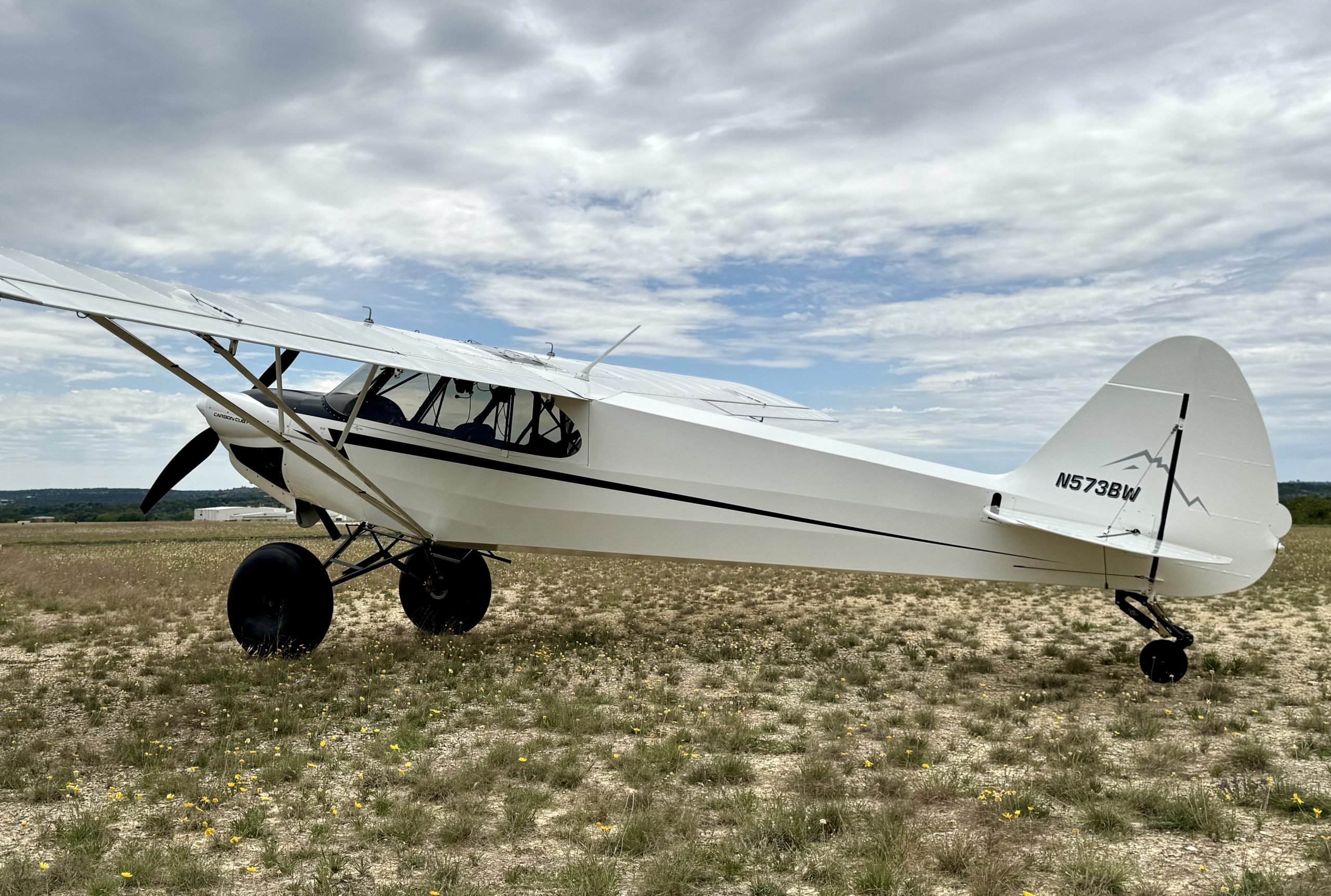

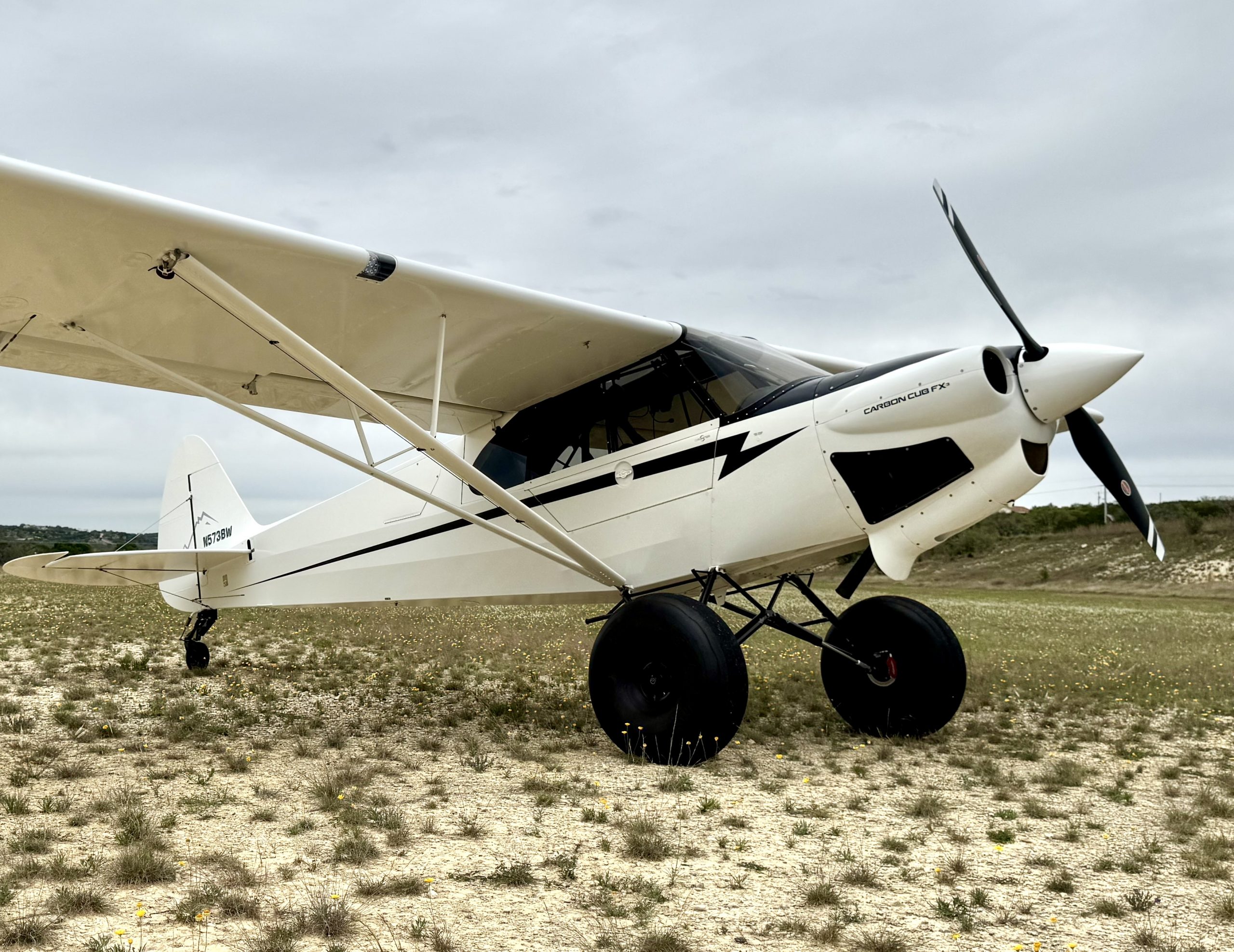

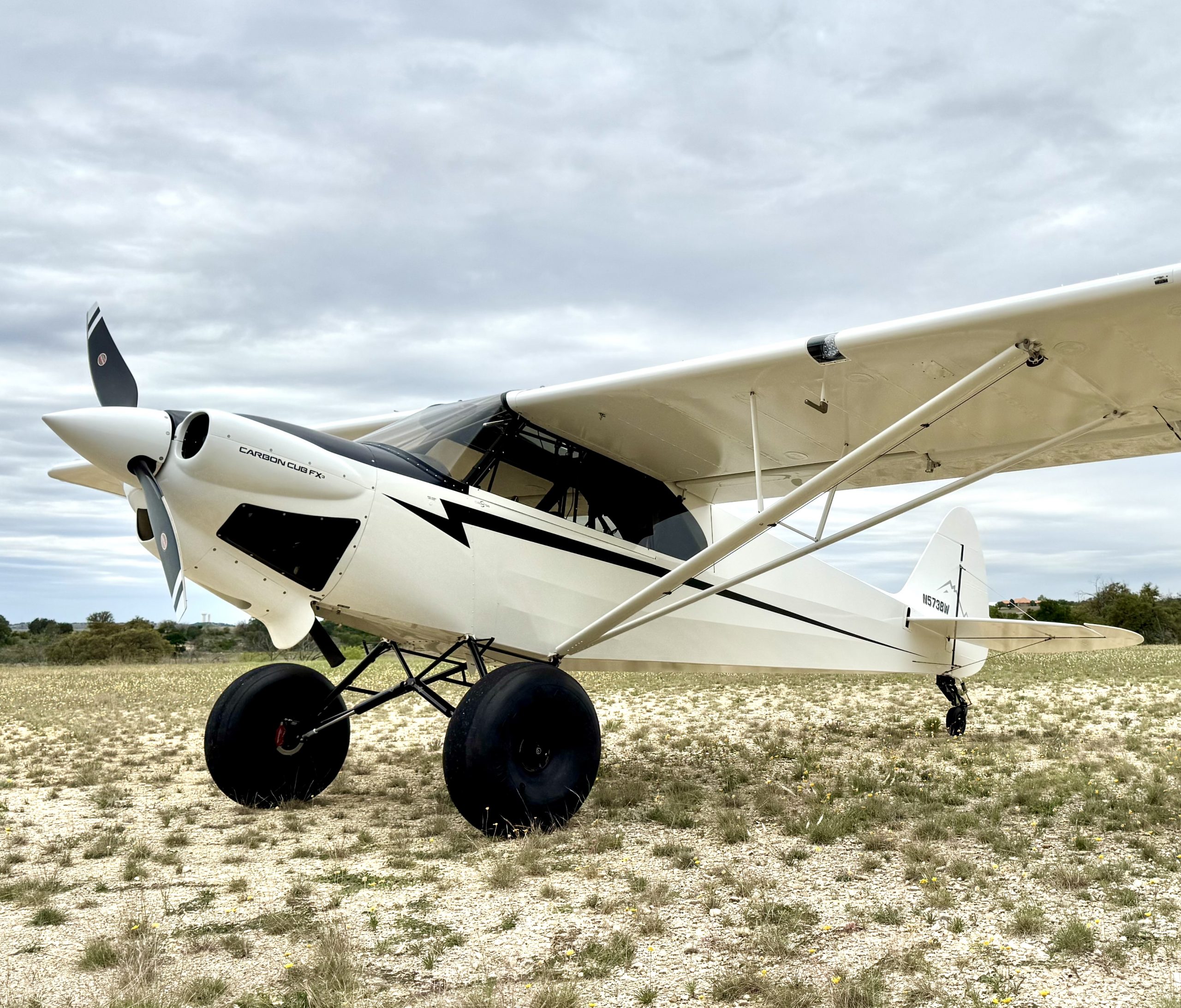

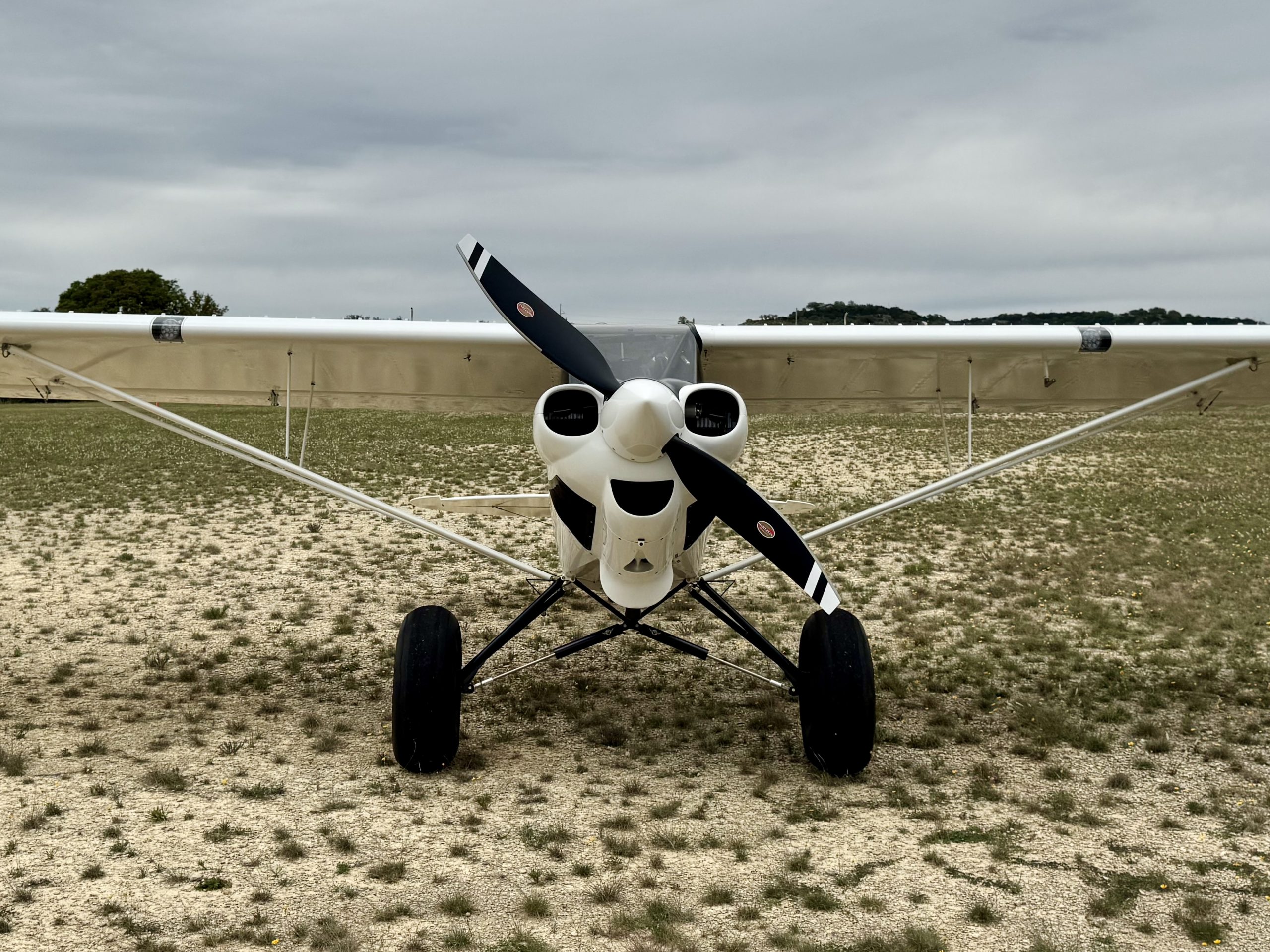

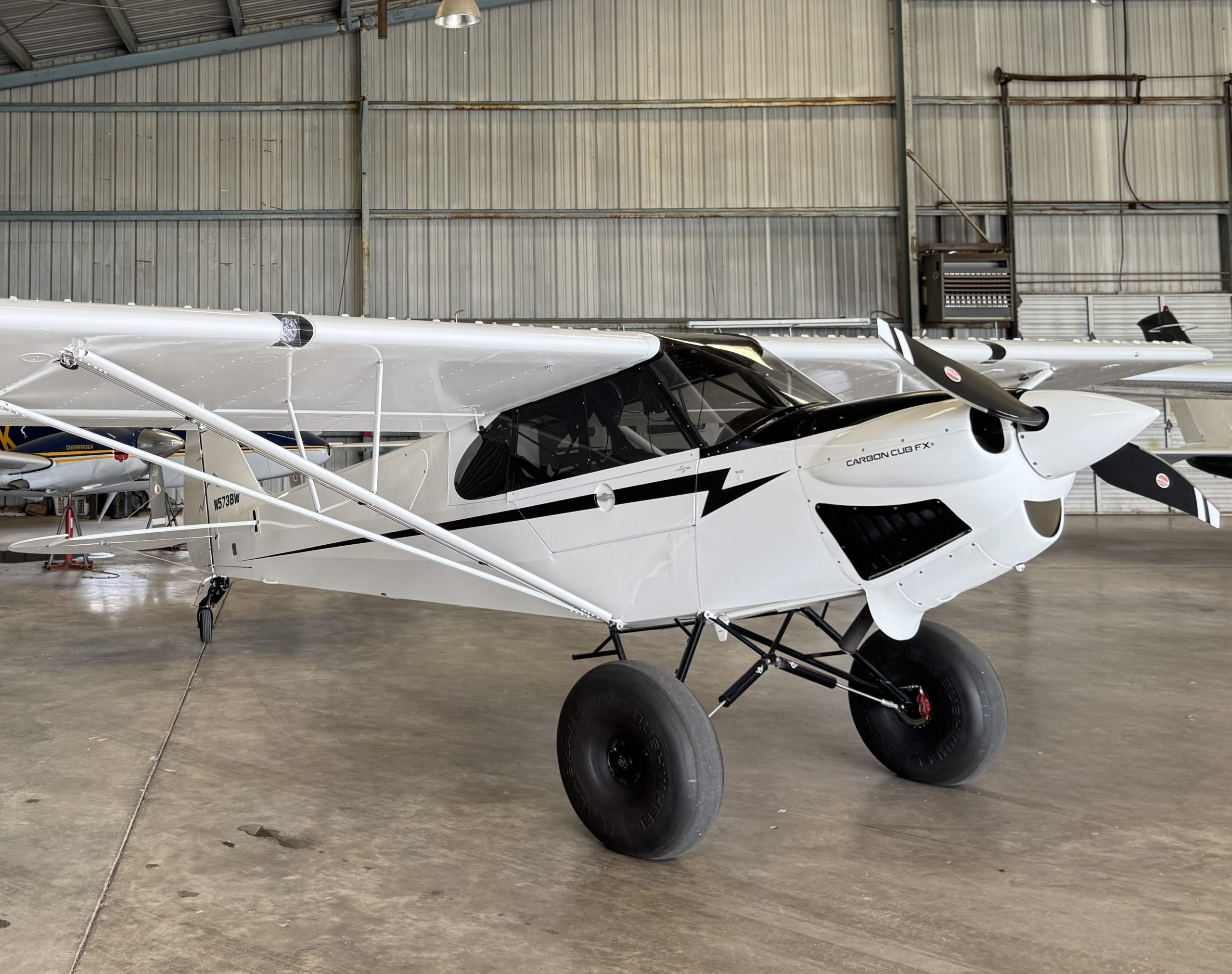

N573BW – 2023 Carbon Cub FX-3 – Adventure Elevated

Overview

  • Location: Kerrville, TX (KERV)
  • Serial: CCX-2000-0178
  • Make: CUBCRAFTERS
  • Model: CCX-2000 - Carbon Cub FX-3
  • Year: 2023
  • N Number: N573BW
  • TTAF: 80 hrs
  • TTE: 80 hrs
  • Engine: Lycoming CC363i
  • Prop: Hartzell Trailblazer Constant Speed Prop 83"
  • Fuel Capacity: Two 22-gallon wing tanks (44-gallon capacity)
  • Empty Weight:
  • Gross Weight: 2,000 lbs
  • Last Annual: July 2025
  • Interior Rating: 10
  • Exterior Rating: 10

Description

N573BW – 2023 Carbon Cub FX-3 – Very Clean + Well Equipped

The third generation of the Carbon Cub, the FX-3 pairs a pilot-controlled constant-speed propeller and delivers incredible performance, efficiency, and speed.  Powered by CubCrafters’ exclusive lightweight CC363i engine and equipped with the 83″ Hartzell Trailblazer constant-speed propeller, the FX-3 features a 2,000 lb. maximum gross weight, exceptional cockpit ergonomics, and impressive cabin heat for true all-season comfort.

This aircraft is exceptionally well equipped, featuring the G3X Executive Glass Touch panel with ADS-B Out, Garmin GTX 345R (ADS-B In), and GMC 307 two-axis autopilot, along with a forward-facing camera for added capability and situational awareness. Built for serious backcountry performance, it includes 29″ ABW tundra tires, Beringer wheels and brakes, Acme Black Ops shocks, and a 1.75″ heavy-duty brake upgrade with stainless steel lines. Long-range fuel tanks, extended baggage with access door, and a lined baggage compartment make it ready for extended adventures. Fully equipped and ready for whatever adventure lies ahead.

Equipment

FIREWALL FORWARD

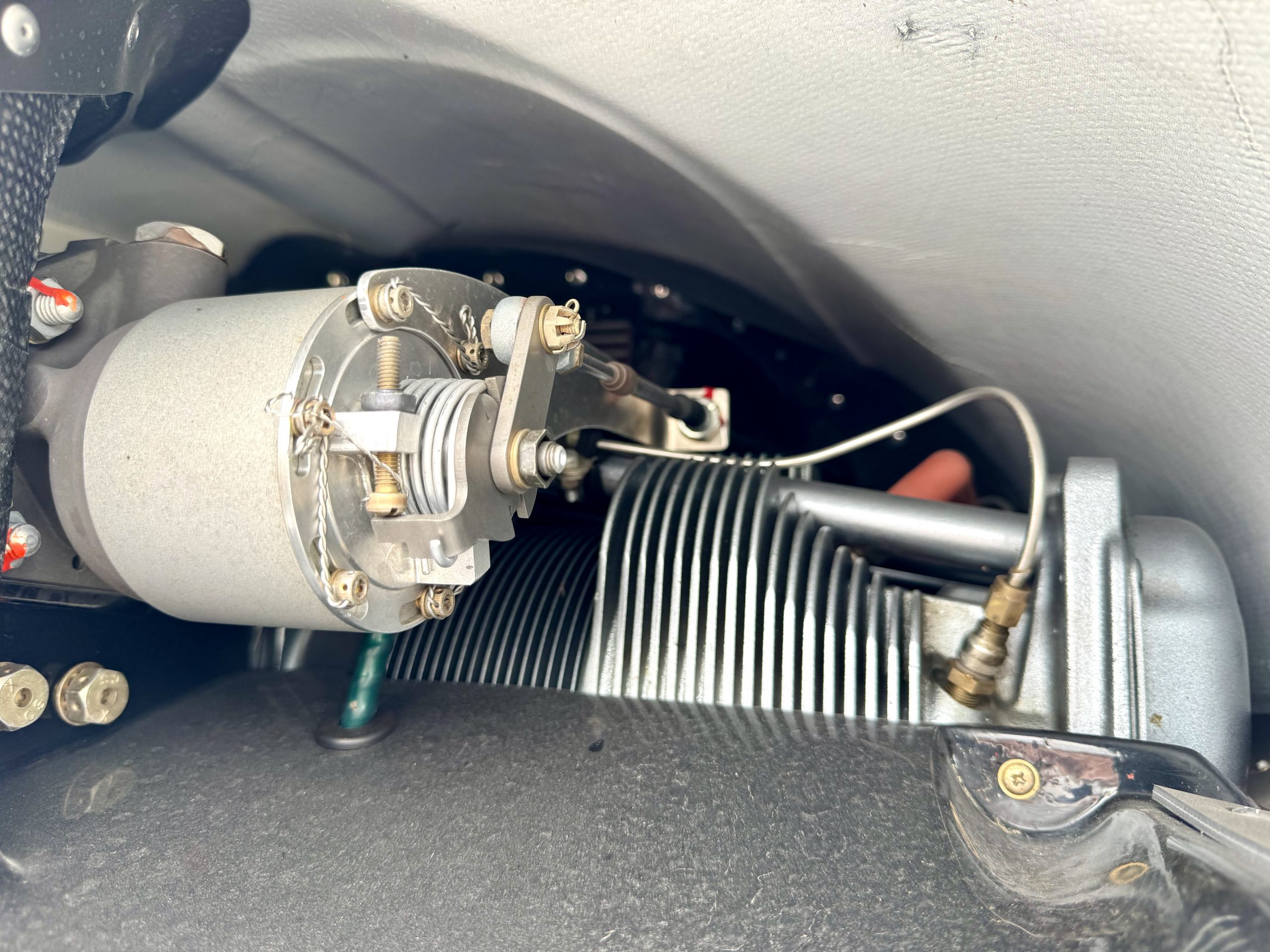

  • CC363i Engine, 186HP
  • Hartzell Trailblazer 83″ Constant Speed Prop upgrade
  • Spin-On Oil Filter & Vernatherm
  • Perforated Fuel Nozzle
  • Lightweight 40 amp alternator
  • Dual Electronic Ignition
  • Ignition backup battery system
  • Iridium spark plugs
  • Lightweight Hartzell Starter
FUEL SYSTEM
  • Two 22 gallon wing tanks (44 gallon capacity)
  • Fuel selector valve (Left, Right, Off, & Both)
  • Gravity feed fuel system
  • No header tanks
  • Two Fuel Pumps
  • Fuel sight gauge in wing roots
  • Fuel filter and drain
WINGS & TAIL
  • Super Cub airfoil – USA35(B) Modified
  • G-Series Flaps
  • G-Series Ailerons

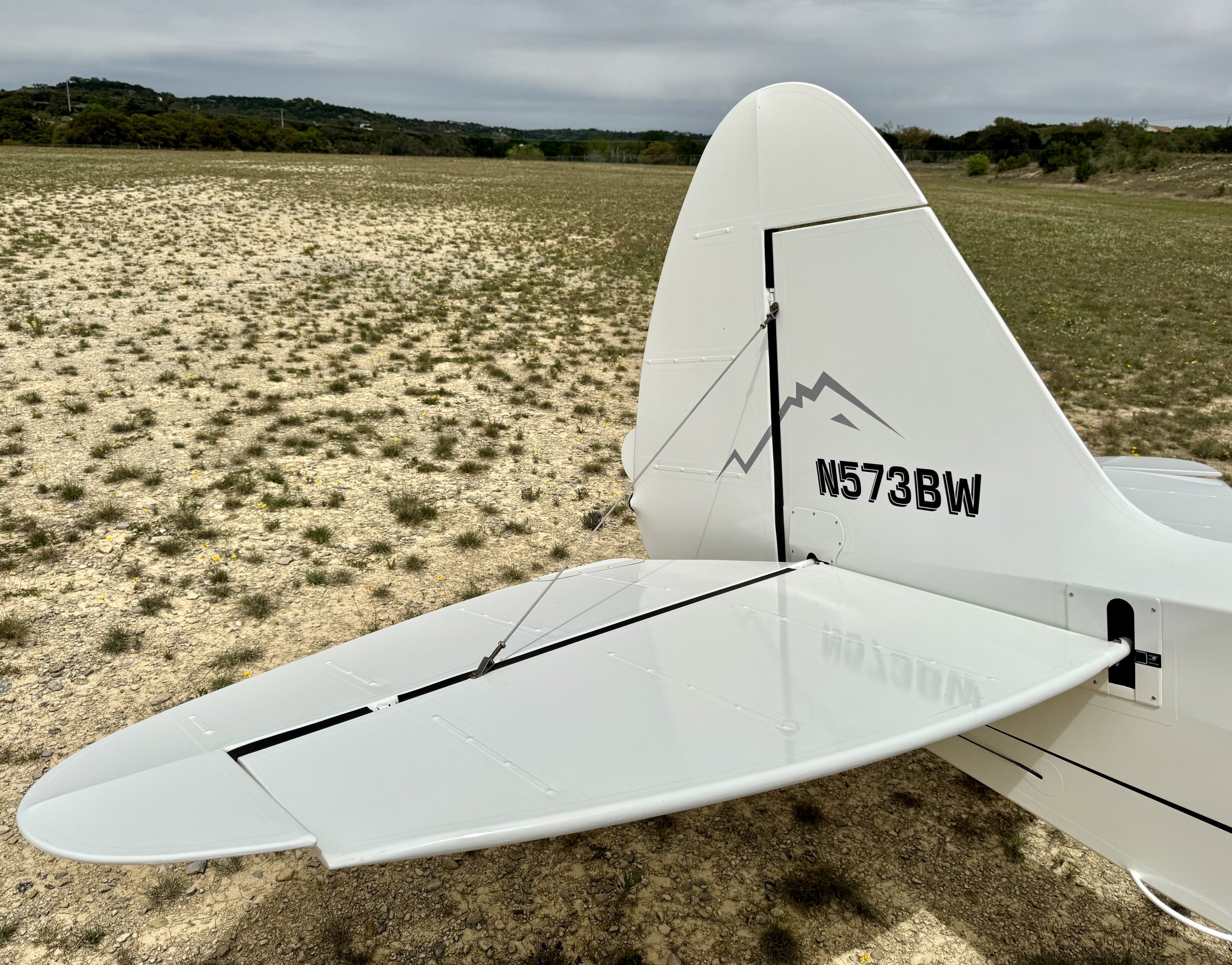

  • G-Series Tail Feathers (Aerodynamically balanced)
  • Vortex generators
  • Gap Seals
AIRFRAME
  • Complete 4130 reinforced fuselage tested to 2,000 lbs
  • Carbon fiber components
  • Front fuel step on landing gear
AVIONICS

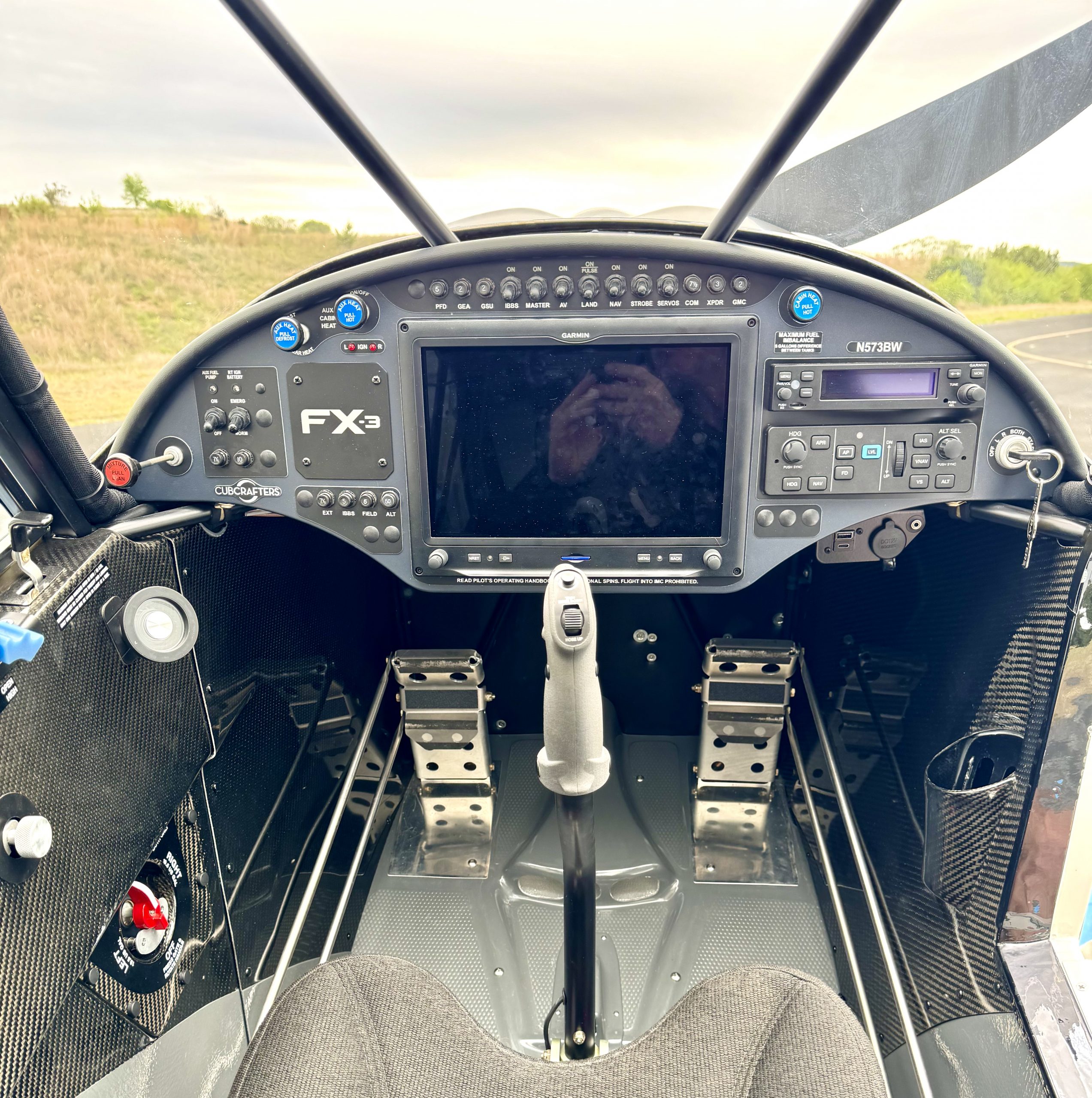

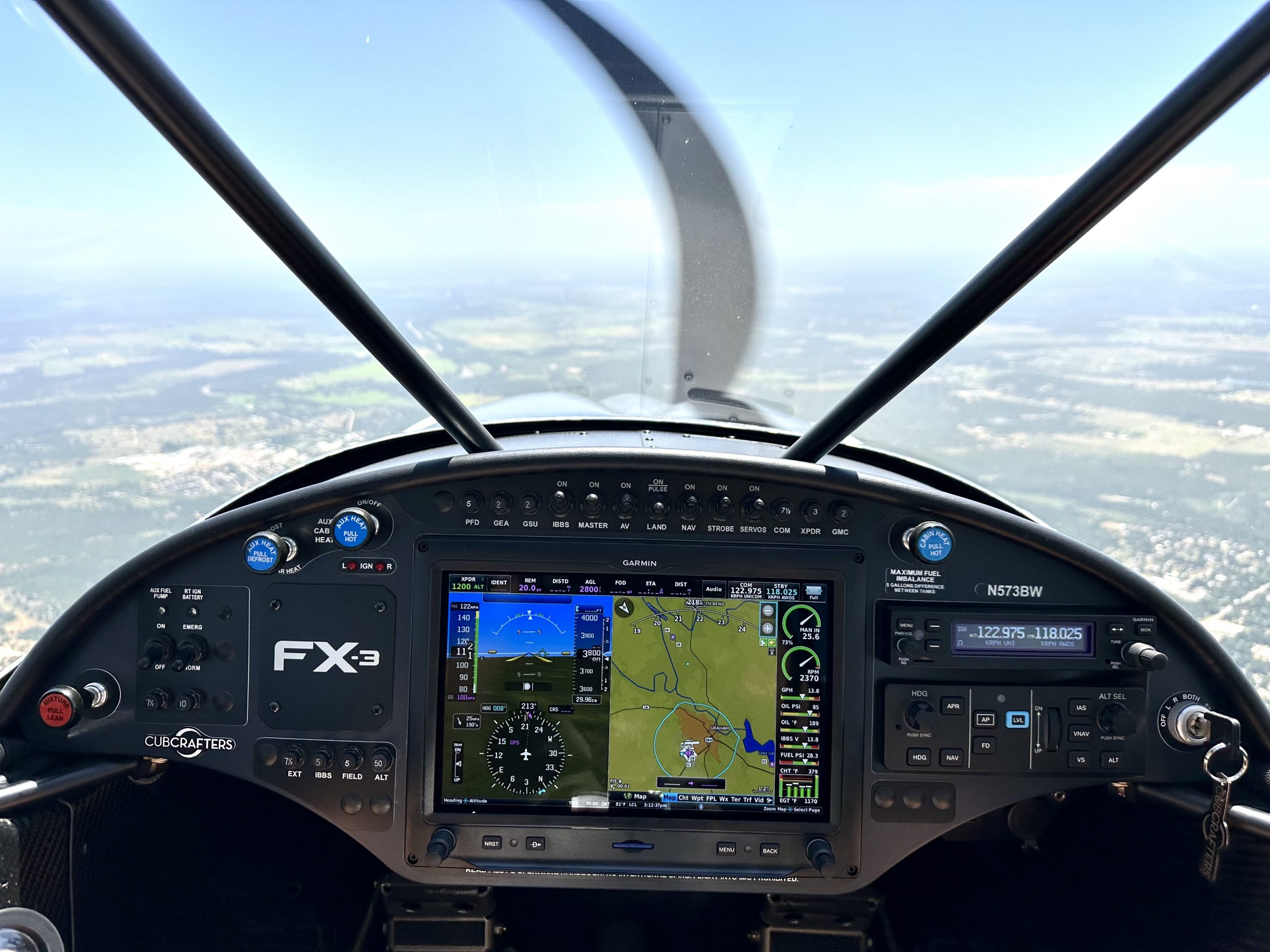

  • G3X Executive Glass touch Panel (includes ADS-B out)
  • Garmin GTX 345R upgrade (ADS-B in for ExecGlass touch)
  • Garmin GMC 307 (2-axis autopilot for ExecGlassTouch)

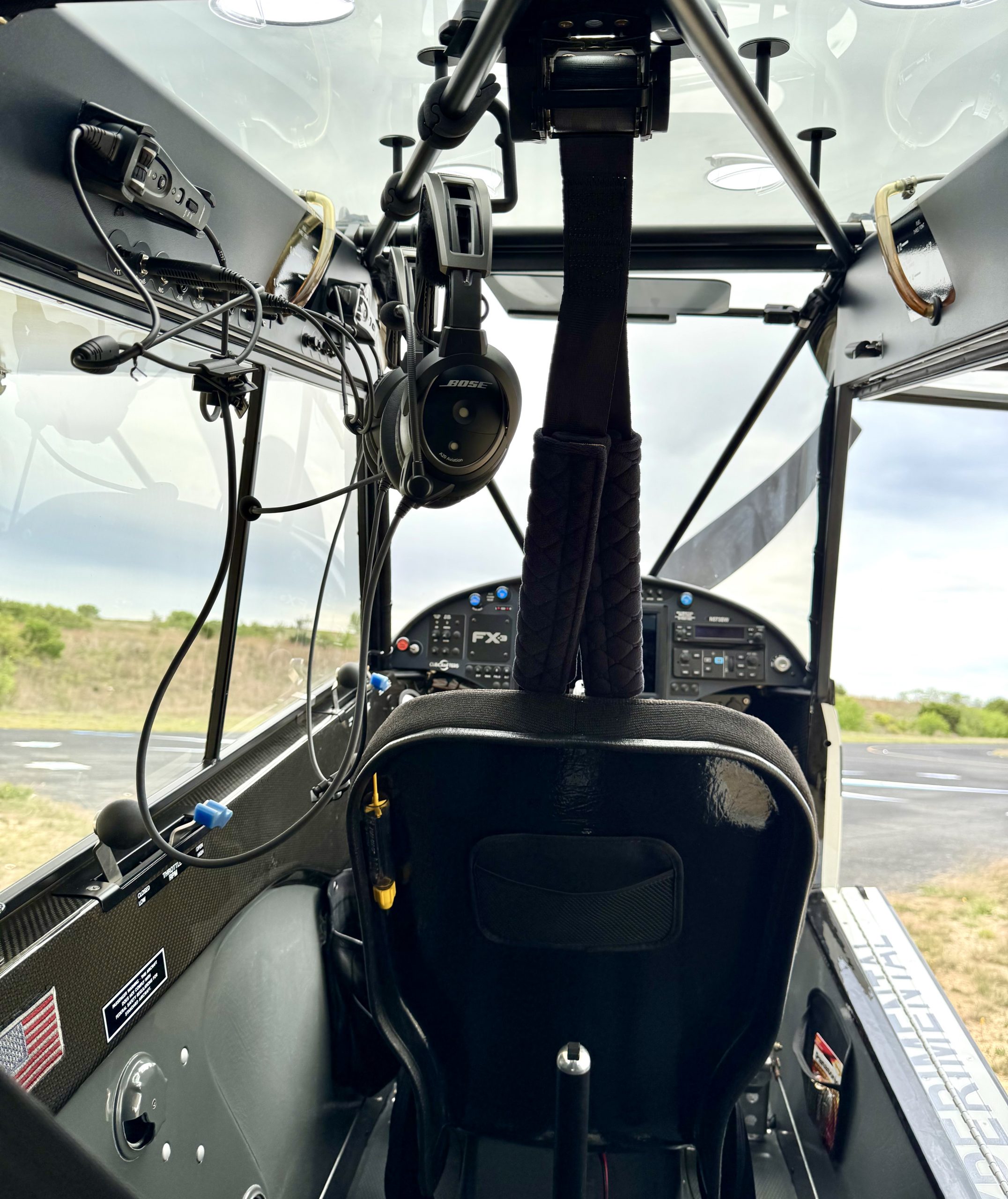

FLIGHT CONTROLS & INTERIOR
  • Forward Facing Camera
  • Mid-Continent TA202 under panel (A/C)

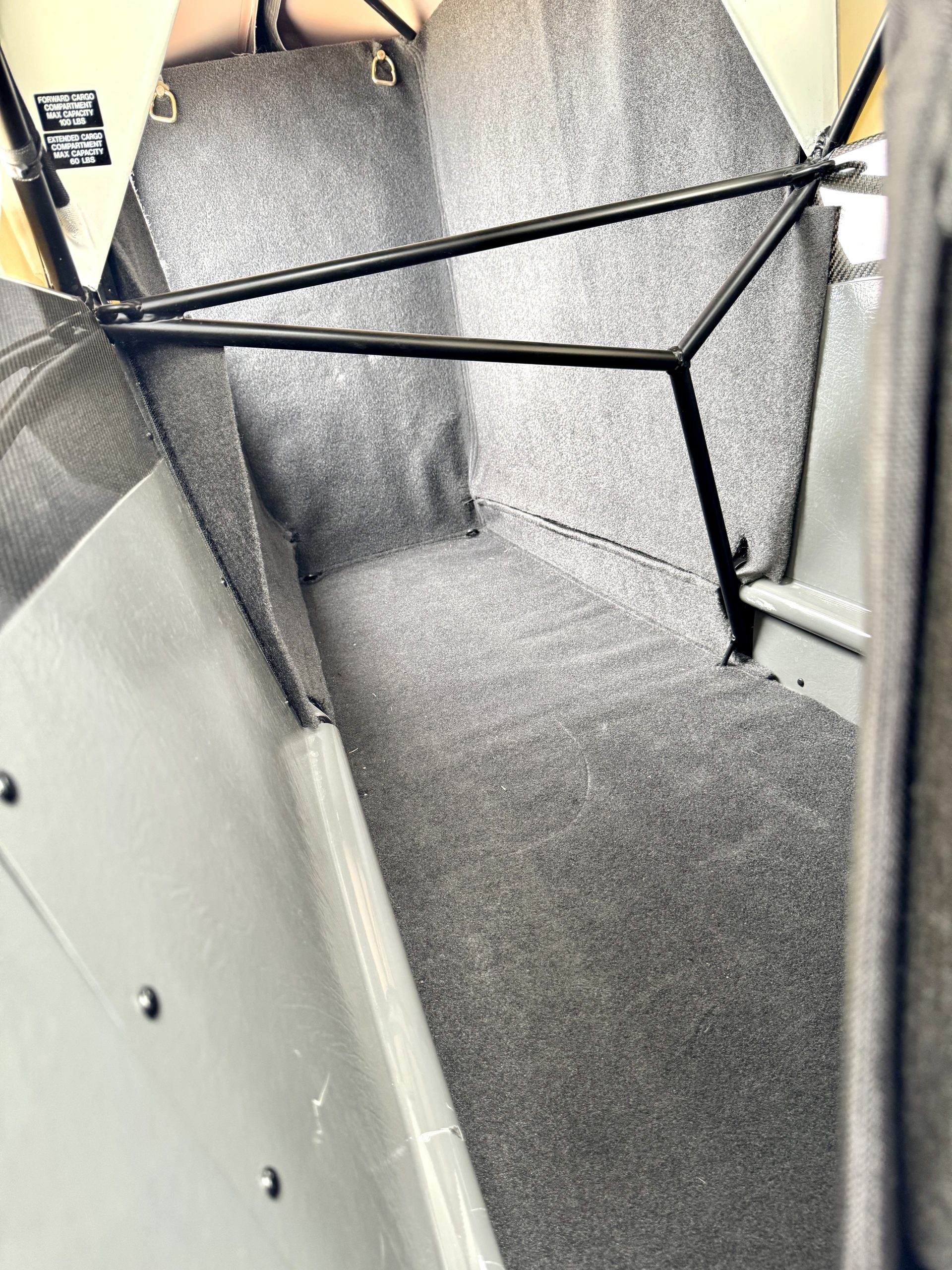

  • Extended Baggage
  • Dual flight controls
  • Propeller Control
  • Electric Elevator Trim (front and rear)
  • Dual toe brakes
  • Pilot push-to-talk in control stick
  • Co-pilot push-to-talk in wing root
  • Pilot & co-pilot standard headset jacks in wing root
  • Powered ANR headset jacks in wing root (LEMO)

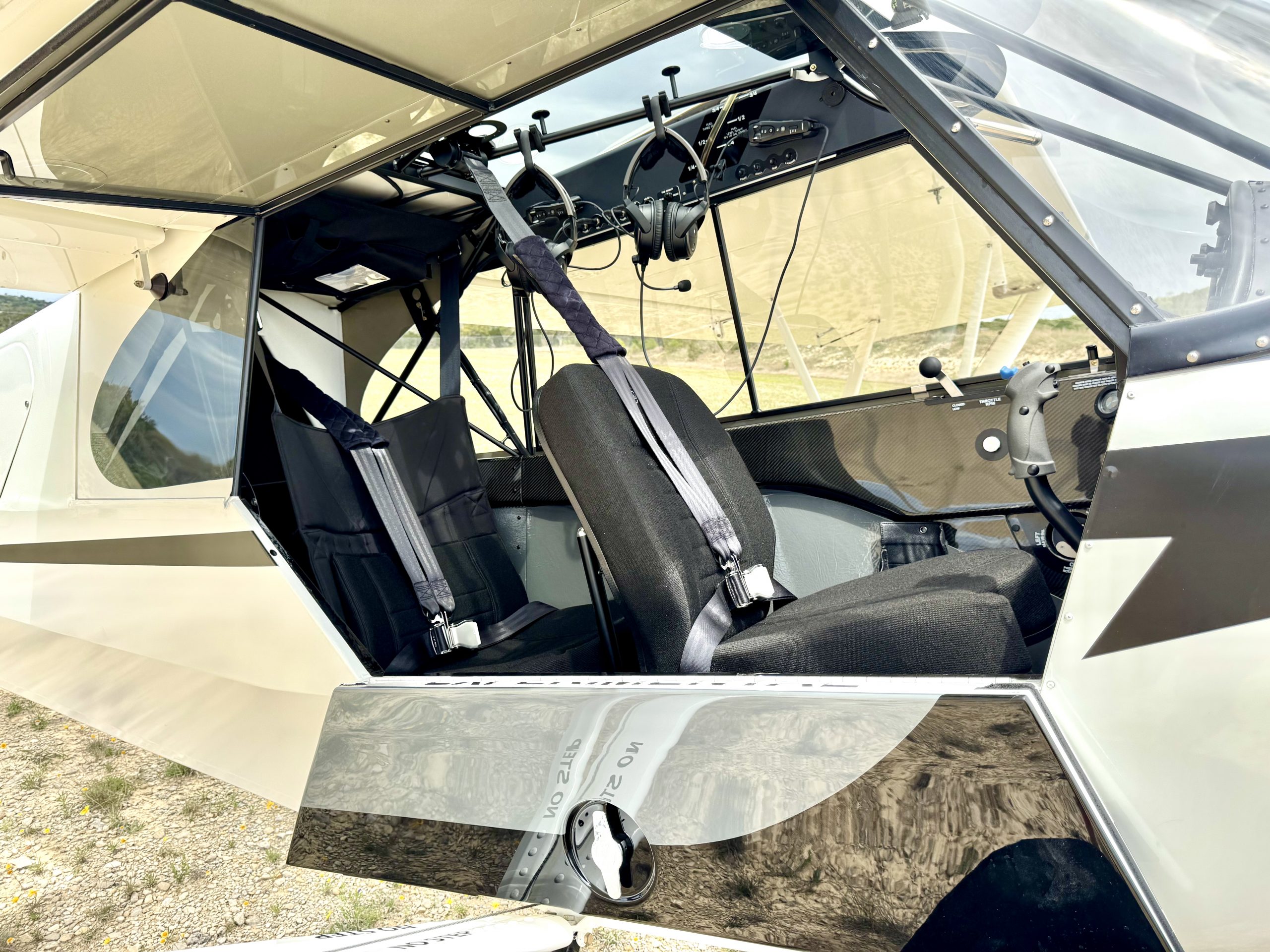

  • Adjustable front seat
  • Stow-away rear seat

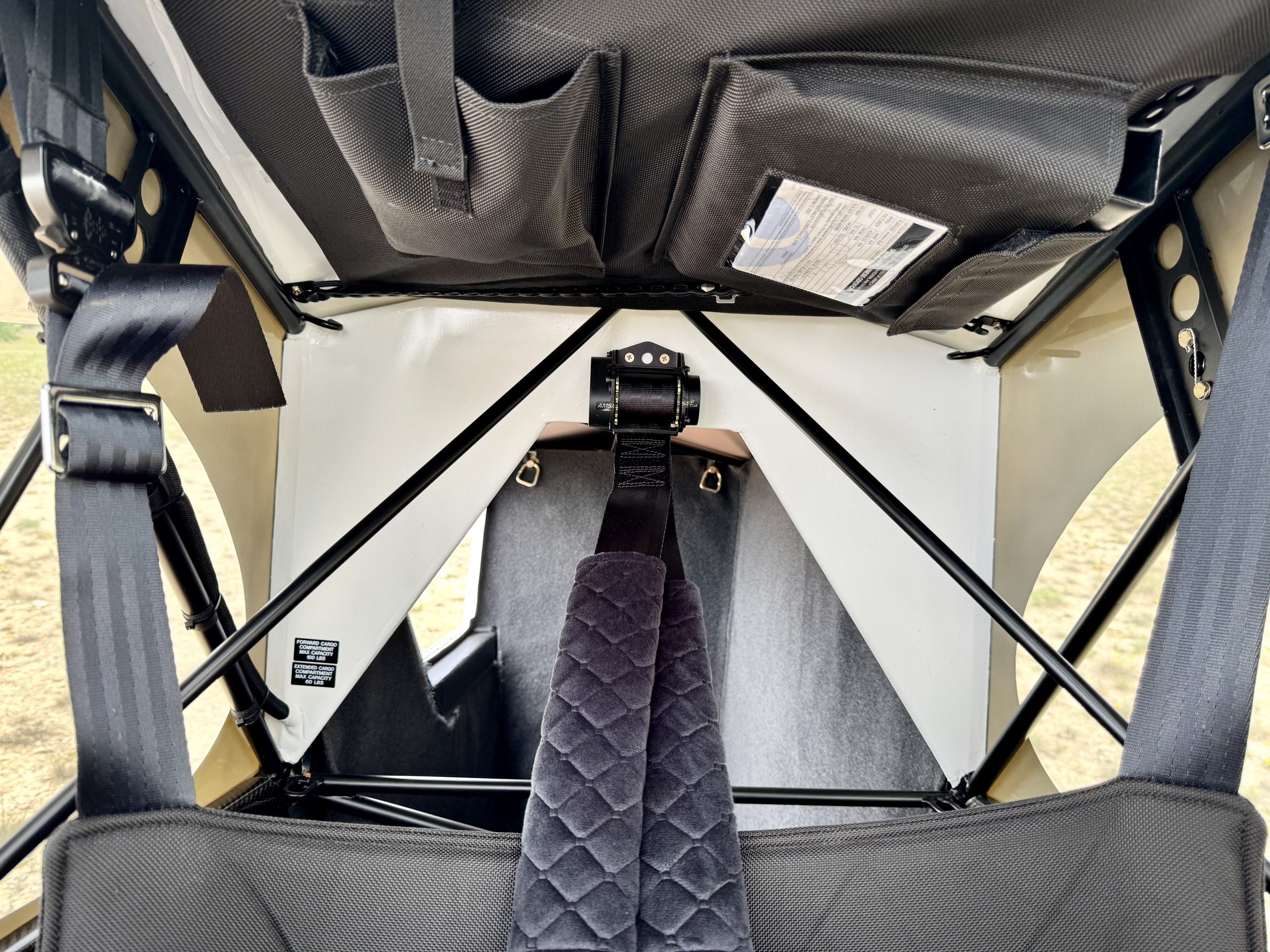

  • Lap belt and inertia reel shoulder harnesses
  • “Ballistic nylon” cloth seat cushions and covers
  • Deluxe Memory Foam – FRONT – Fabric
  • Deluxe Memory Foam – REAR – Fabric
  • Enclosed Rudder Cable Covers
  • Full floorboards
  • Halon Fire Extinguisher (at pilot seat)
  • Ignition Status Lights (left / right)
  • Mixture control
  • Cabin heat control
  • Improved Cabin Heat System
  • Circuit breakers
  • Master switch
  • Avionics master switch
  • 12V auxiliary outlet
  • Odyssey SBS_J16 Battery
  • Flat Black Glare Shield
  • Dual swing-out windows

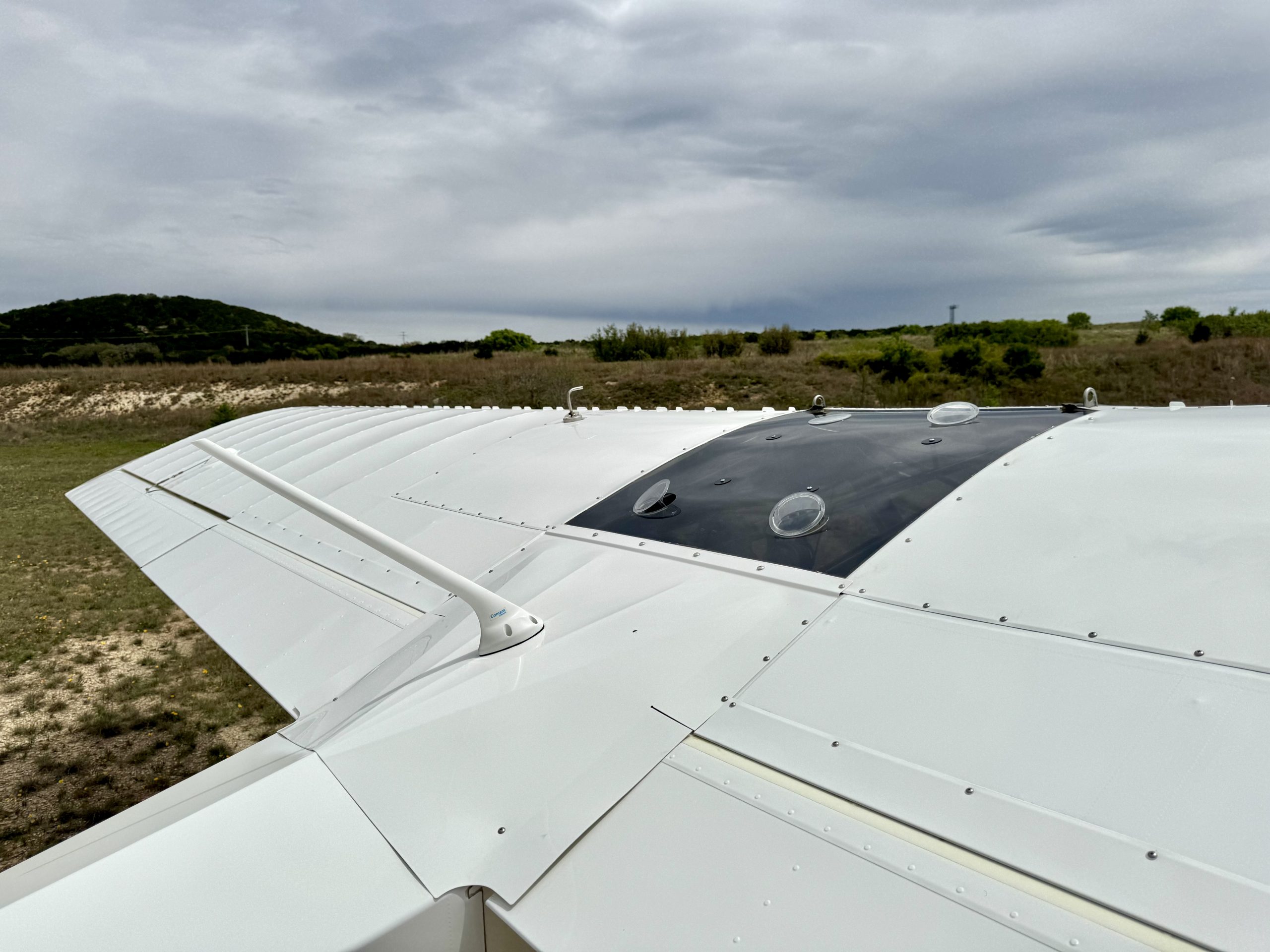

  • Tinted windows and skylight
  • Cabin fresh air vents 4x
  • Rosen Sunvisor
  • Rear cabin cargo tie down points
  • Aft upper baggage area
  • Cup/Bottle holder for pilot
  • Overhead Headset Hook (TWO HOOK)
LANDING GEAR
  • 3×3 extended HD landing gear

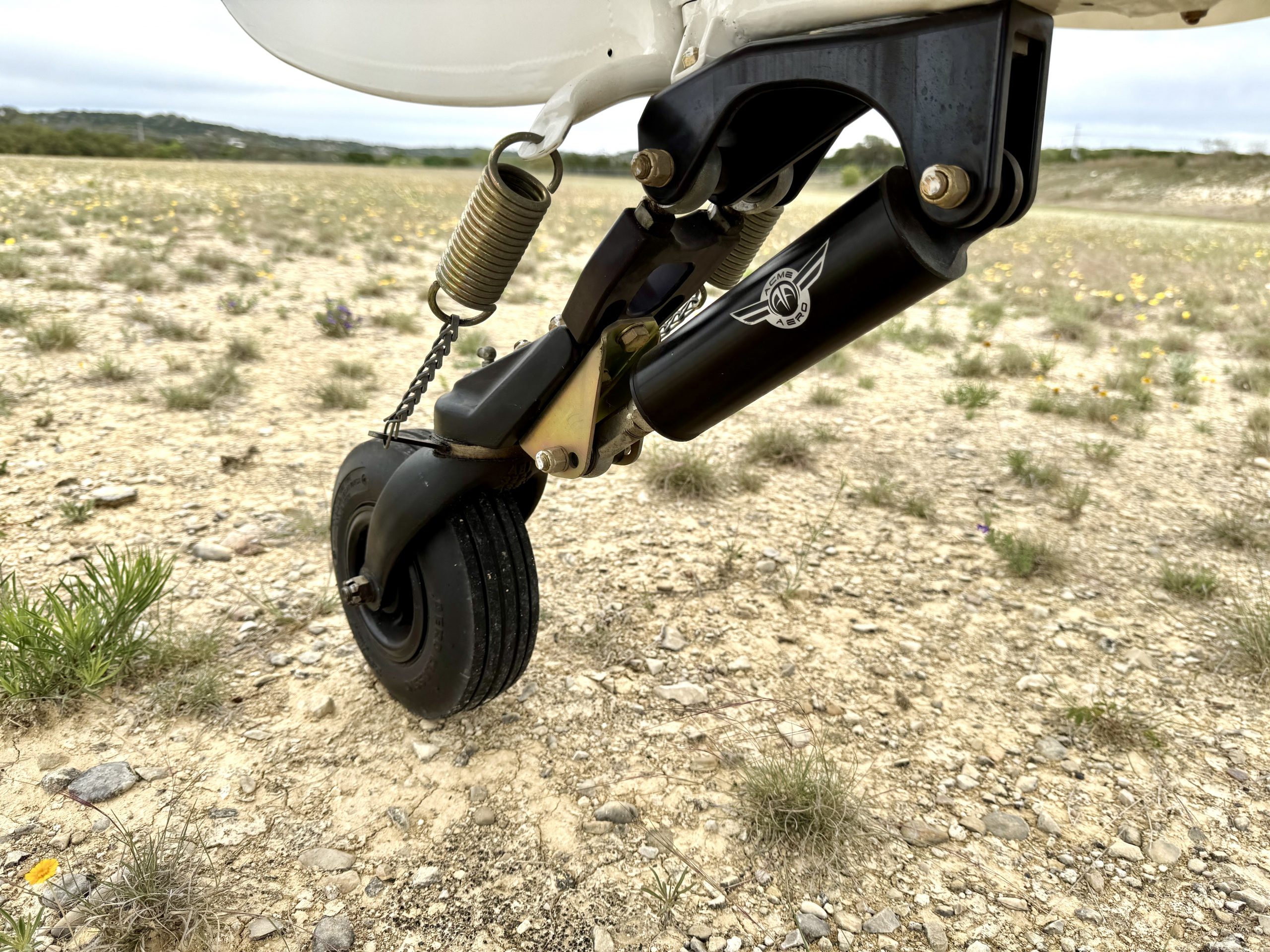

  • 3200-Type Steerable Tailwheel

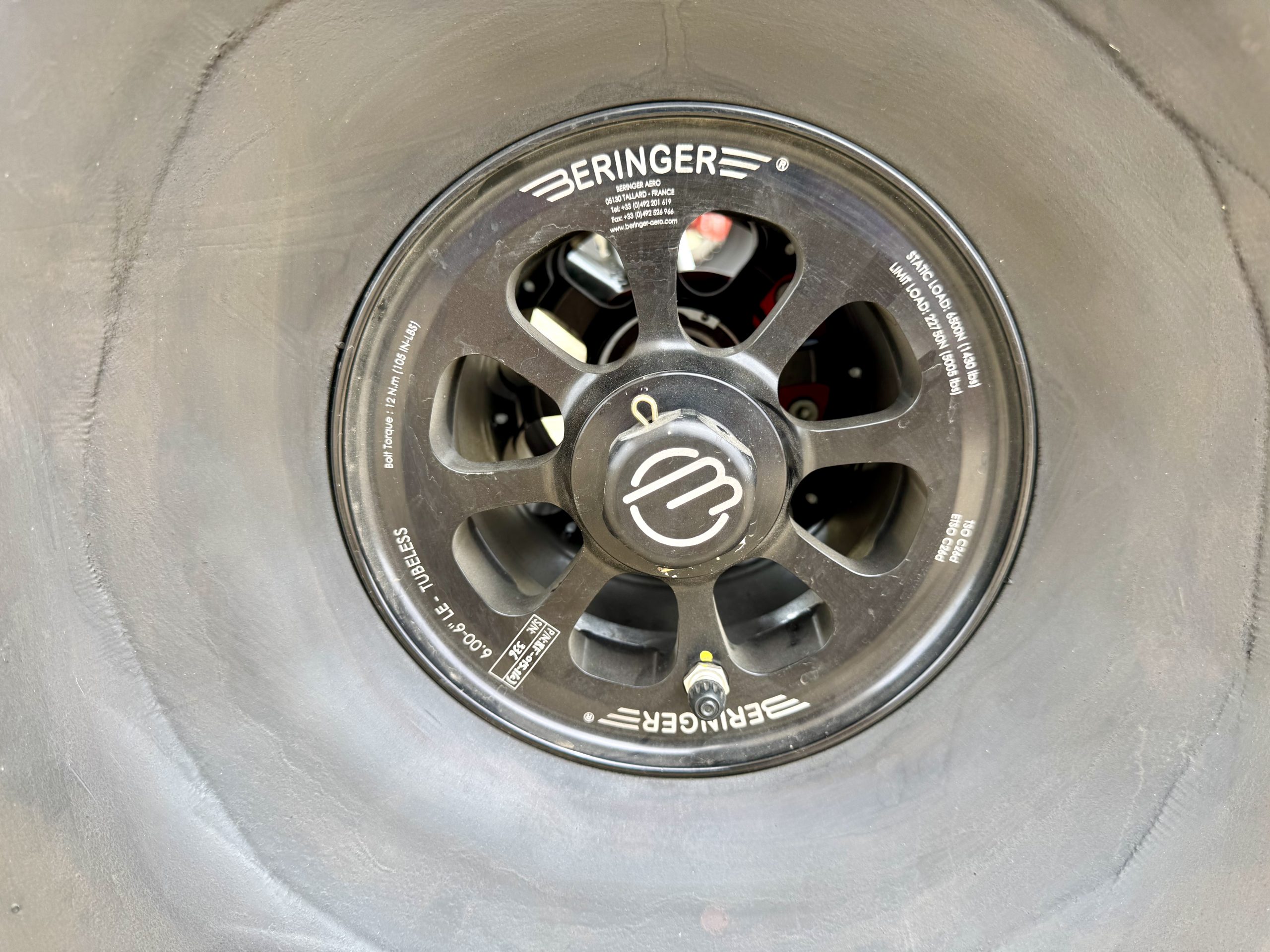

  • Beringer Wheels and Brakes

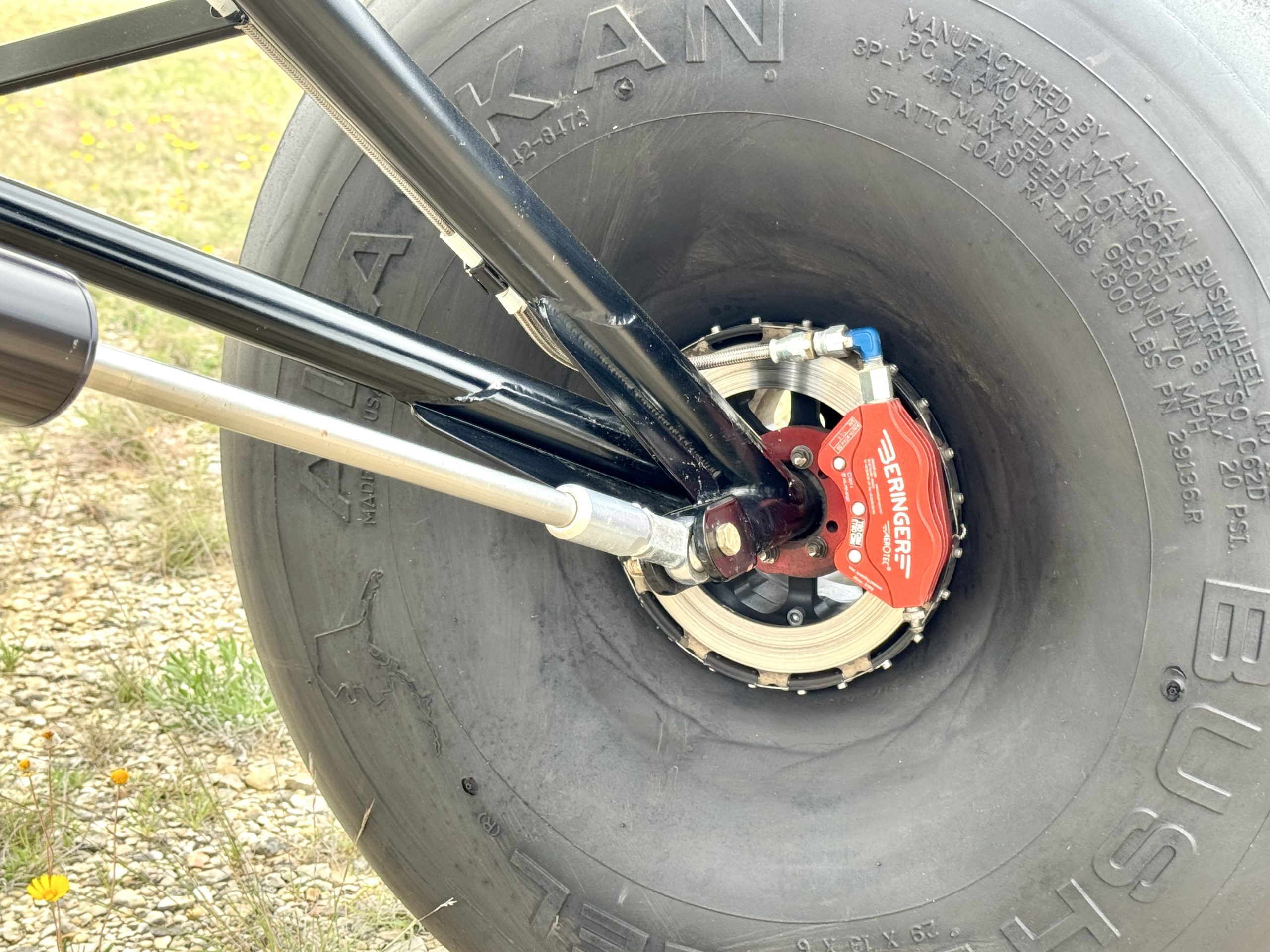

  • 1.75″ HD Brake Upgrade
  • Stainless Steel Brake Lines

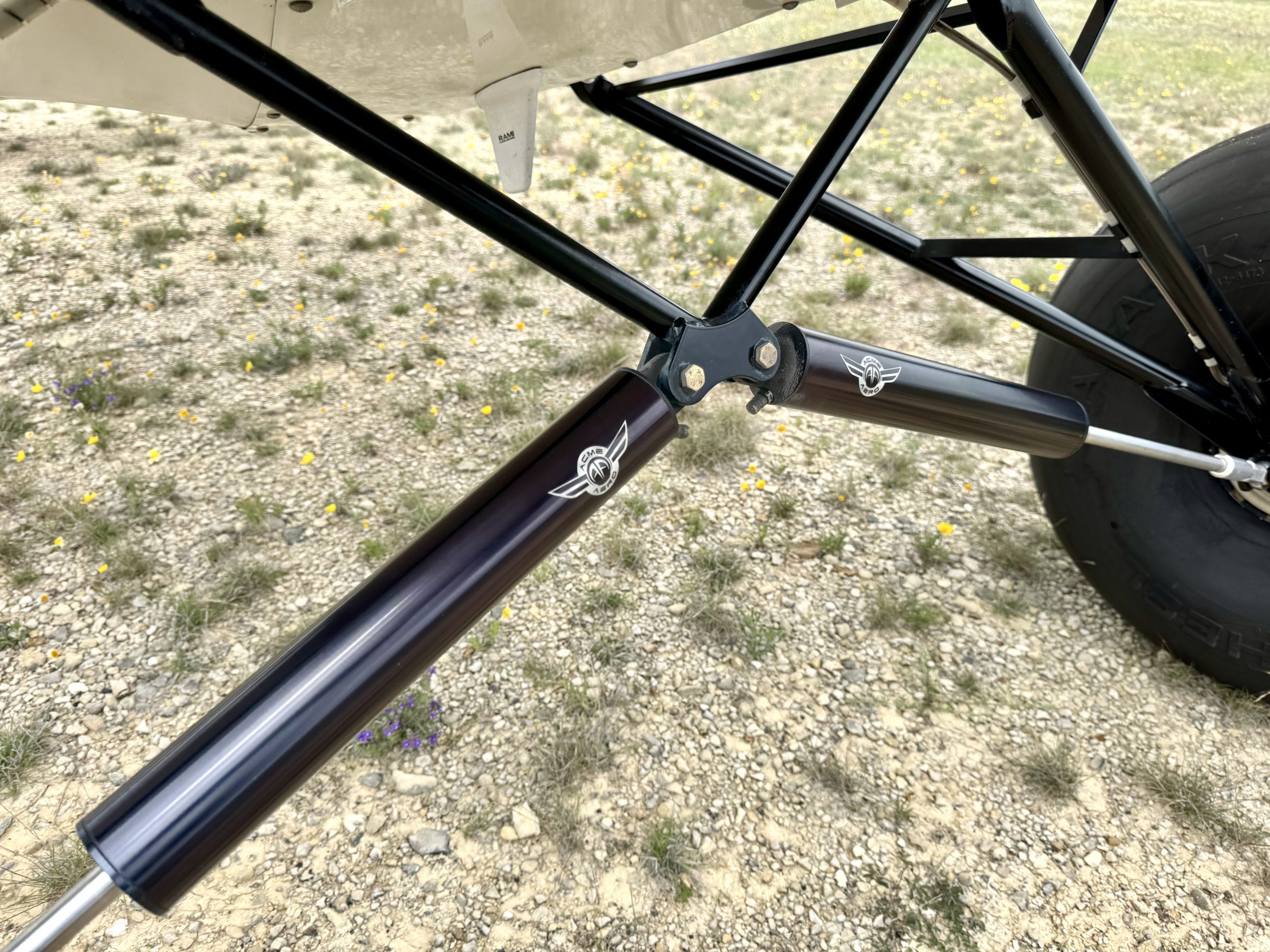

  • Acme Black Ops
  • Acme Stinger
  • 29” ABW Tundra Tires (with HD tread)
  • Parking brake
  • Non-skid pilot step
SAFETY FEATURES
  • Halon Fire Extinguisher (at pilot seat)
  • Light Weight LED Lighting & Strobe Package w/ wig wag
  • Front & rear seat inertia reel 4 point harnesses
  • Audible stall warning horn
  • Kannad 406 Integra ELT (Built-In GPS)
  • Visual fuel gauges
  • Dual-action safety fuel selector valve
  • Complete 4130 reinforced fuselage
  • Ignition backup battery system

Price: $379,500

Contact

Boomerang Air – CubCrafters Certified Sales Center

Mike Sasser
(512) 633-0451 (call or text)
