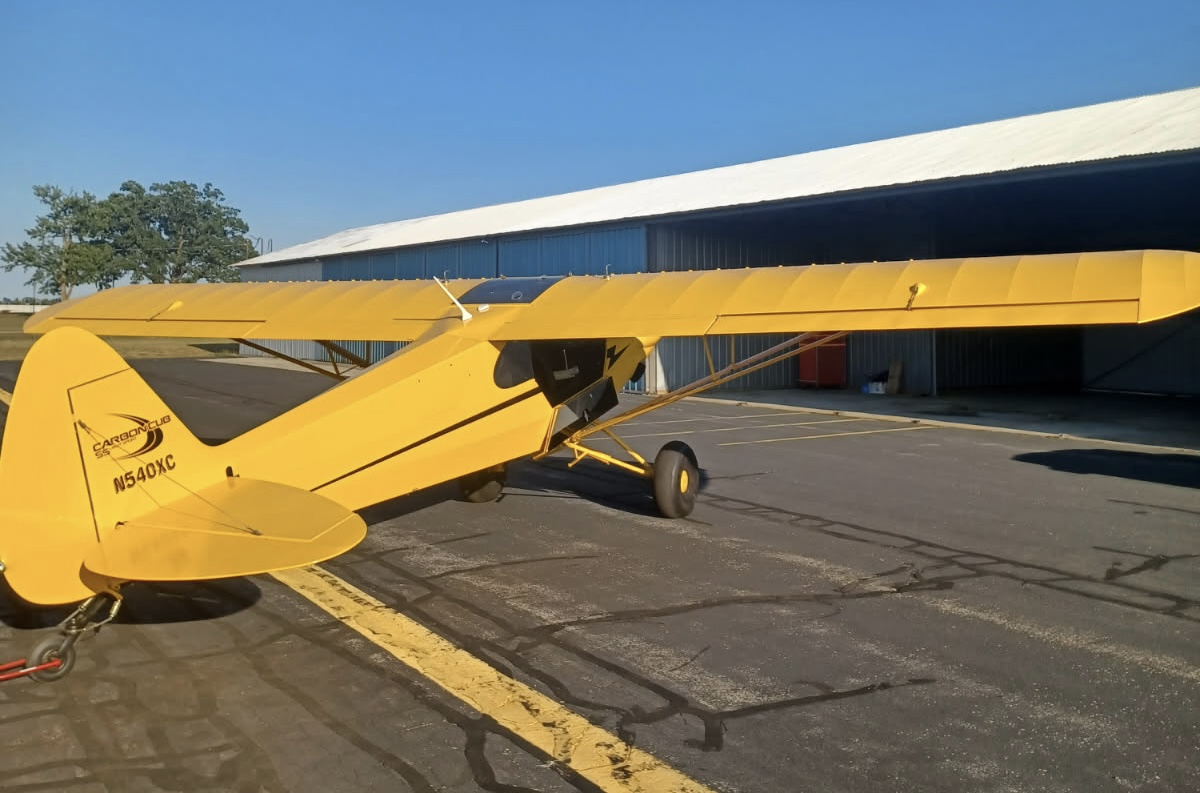

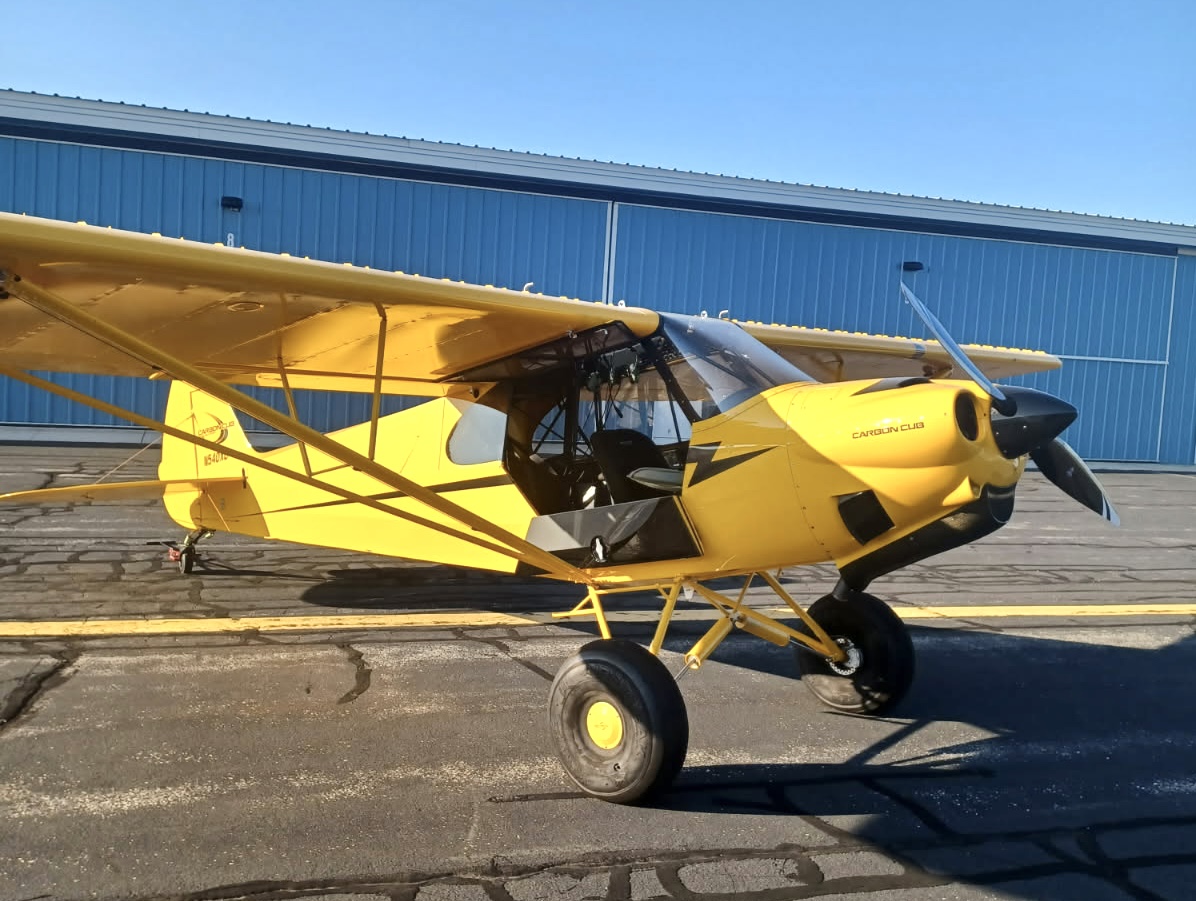

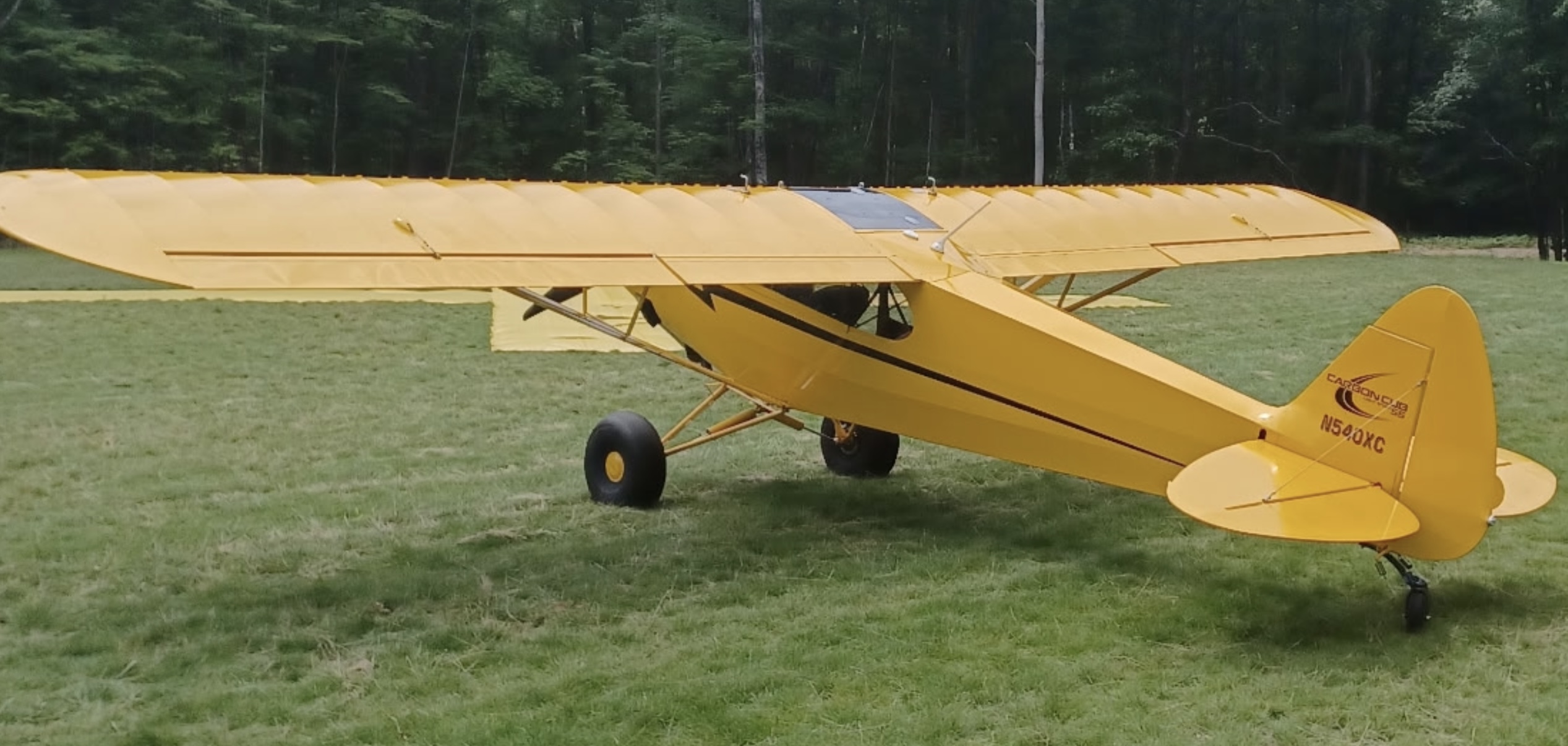

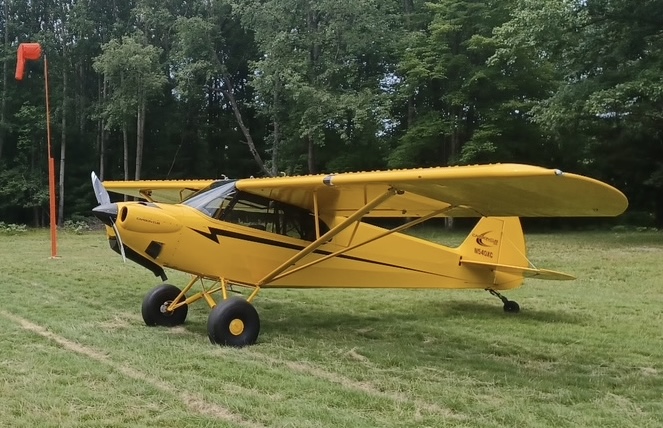

N540XC – 2019 Carbon Cub SS – Only 61 Hours

This spotless 2019 Carbon Cub SS is an exceptional low-time example with just 61 hours total time since new. Powered by the 180 HP CC340 engine and swinging an 80×50 Catto propeller with a nickel leading edge, this SS delivers the performance and backcountry capability the Carbon Cub is known for. Under the new MOSAIC rule, this E-LSA can now be flown at a maximum gross weight of 1,865 pounds, adding even more utility to an already highly capable aircraft. Finished in classic Cub Yellow PPG urethane paint, it looks every bit as good as its remarkably low time suggests.

The backcountry equipment is already here and ready to go. Color-matched 3×3 landing gear, stainless steel brake lines, 1.5-inch Grove brakes with 6-inch wheels, 26-inch Airstreak tundra tires, and AOSS suspension provide the confidence to explore destinations well beyond the pavement. It also features extended baggage with a convenient side-access door, a 3200A tailwheel, AeroLED day/night VFR lighting, vortex generators, and a Reiff engine preheater. This Carbon Cub SS is a rare opportunity to pick up an exceptionally clean, nearly new aircraft that’s already equipped for adventure.

Equipment

FIREWALL FORWARD

• TITAN® 340CC Engine, 180HP
• Magnesium Accessory Case
• Spin-On Oil Filter & Vernatherm
• Perforated Fuel Nozzle
• Adjustable Cowl Flaps
• CATTO Composite Propeller
• Dynamic prop balancing
• Lightweight 40 amp alternator
• Dual Electronic Ignition
• Ignition backup battery system
• Iridium spark plugs
• Lightweight Hartzell Starter
• Carburetor heat
• Reiff Engine Preheater (110V / cylinders & oil pan)

FUEL SYSTEM

• Two 12 gallon wing tanks (24 gallon capacity)
• Fuel selector valve (Left, Right, Off, & Both)
• Gravity feed fuel system
• No header tanks or fuel pump
• Fuel sight gauge in wing roots
• Fuel filter and drain
• Primer

WINGS & TAIL

• Super Cub airfoil – USA35(B)
• Wings tested to 1,865 lbs
• (40% higher than LSA requirements)
• Flaps – Three positions: 15°/30°/50°
• Vortex generators
• Aerodynamically balanced tail feathers

AIRFRAME

• Complete 4130 reinforced fuselage tested to 1,865 lbs
• (40% higher than LSA requirements)
• Carbon fiber components
• Front fuel step on landing gear

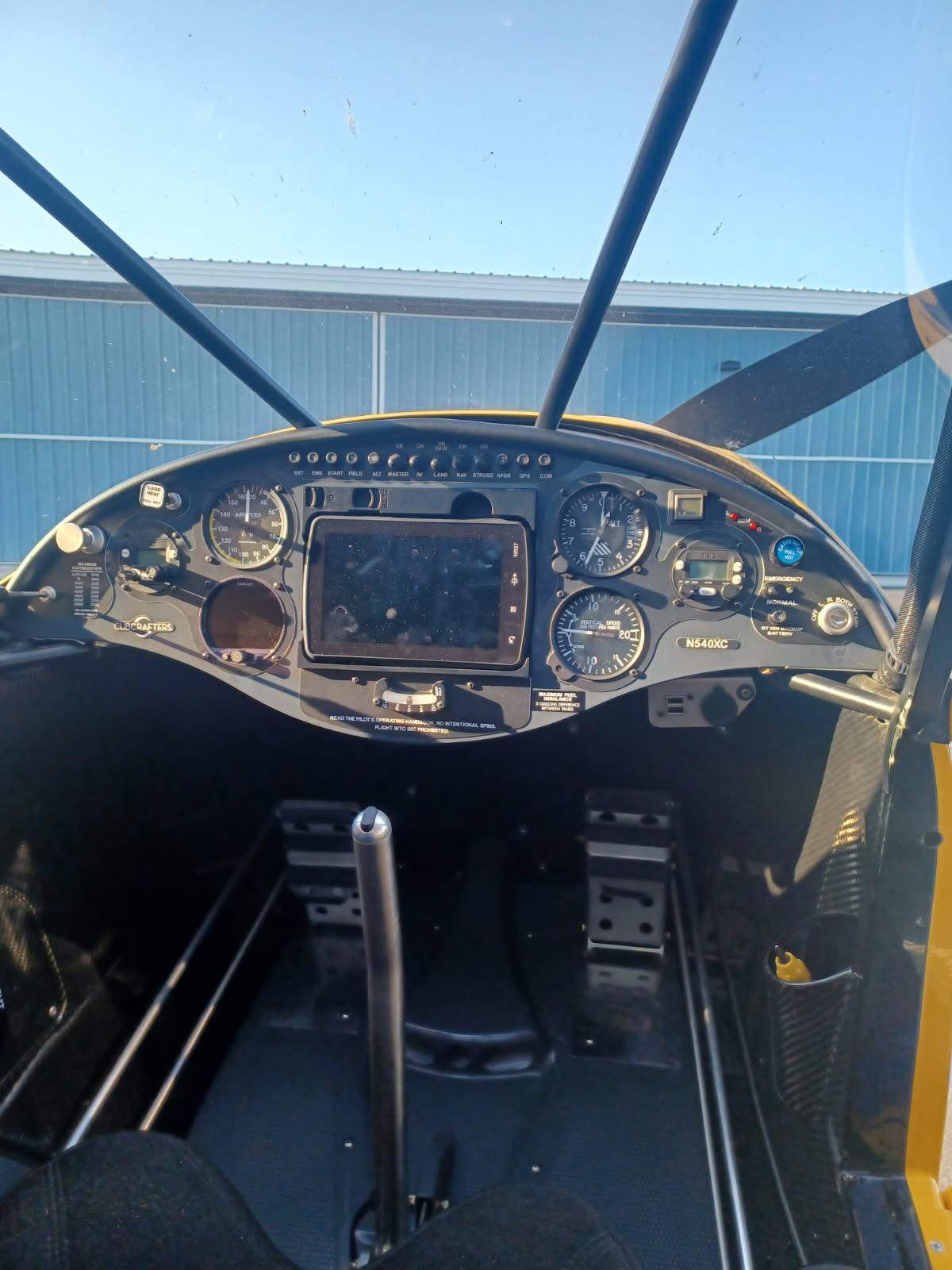

WORLD VFR INSTRUMENT PANEL

• Garmin aera™ 760
• Trig TY91 VHF Radio – 2¼”
• Electronics Int’l CGR-30P Engine Monitor
• PM3000R Intercom
• Digital Tachometer
• Digital Oil Pressure/Temp
• Airspeed Indicator
• Altimeter
• Vertical Speed Indicator
• Garmin 3D ADS-B (ADS-B in receiver for World VFR Panel)
• Trig TT22 Transponder upgrade (World VFR Panel)
• Mid-Continent TA102 (TSO’d USB Power Supply for MyPanel)

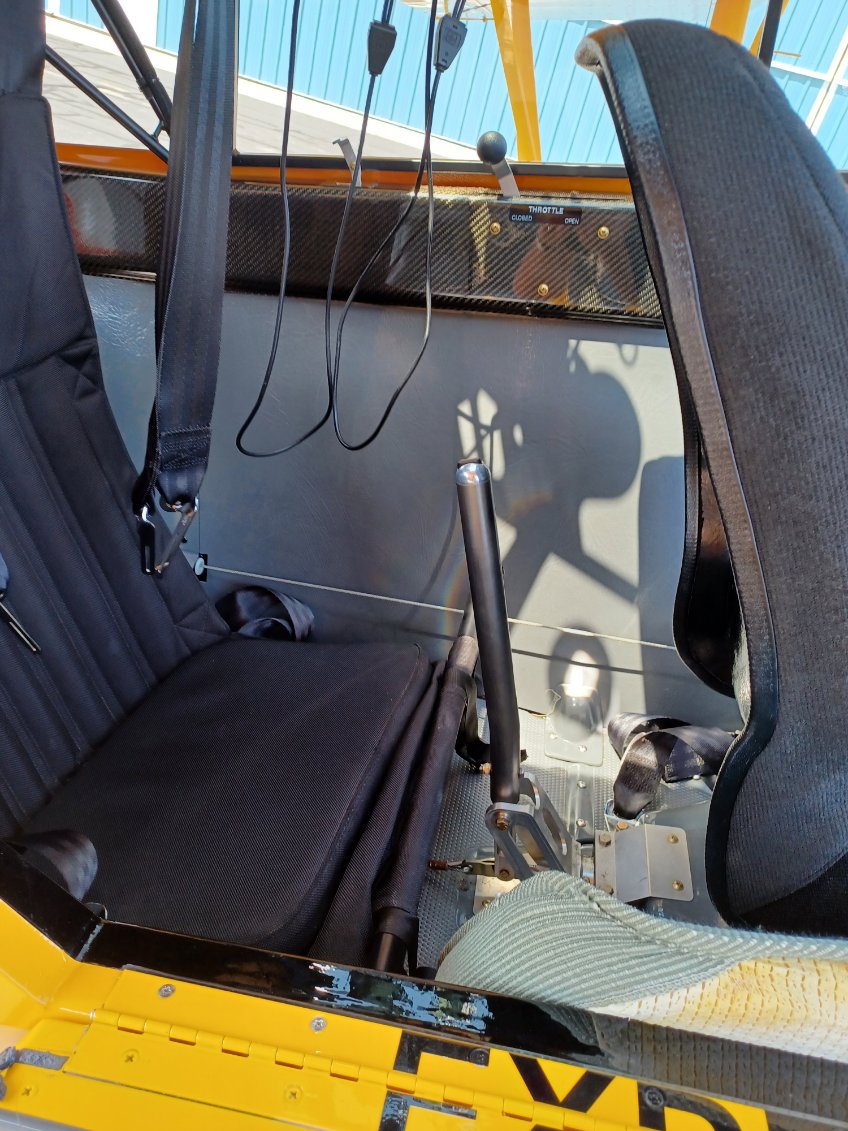

FLIGHT CONTROLS & INTERIOR

• Dual flight controls
• Elevator trim
• Rear seat trim control
• Dual toe brakes
• Pilot push-to-talk in control stick
• Co-pilot push-to-talk in wing root
• Pilot & co-pilot standard headset jacks in wing root
• Powered ANR headset jacks in wing root (LEMO)
• Adjustable front seat

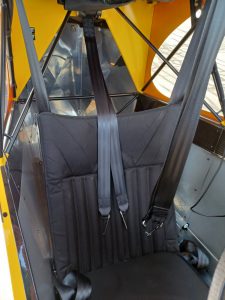

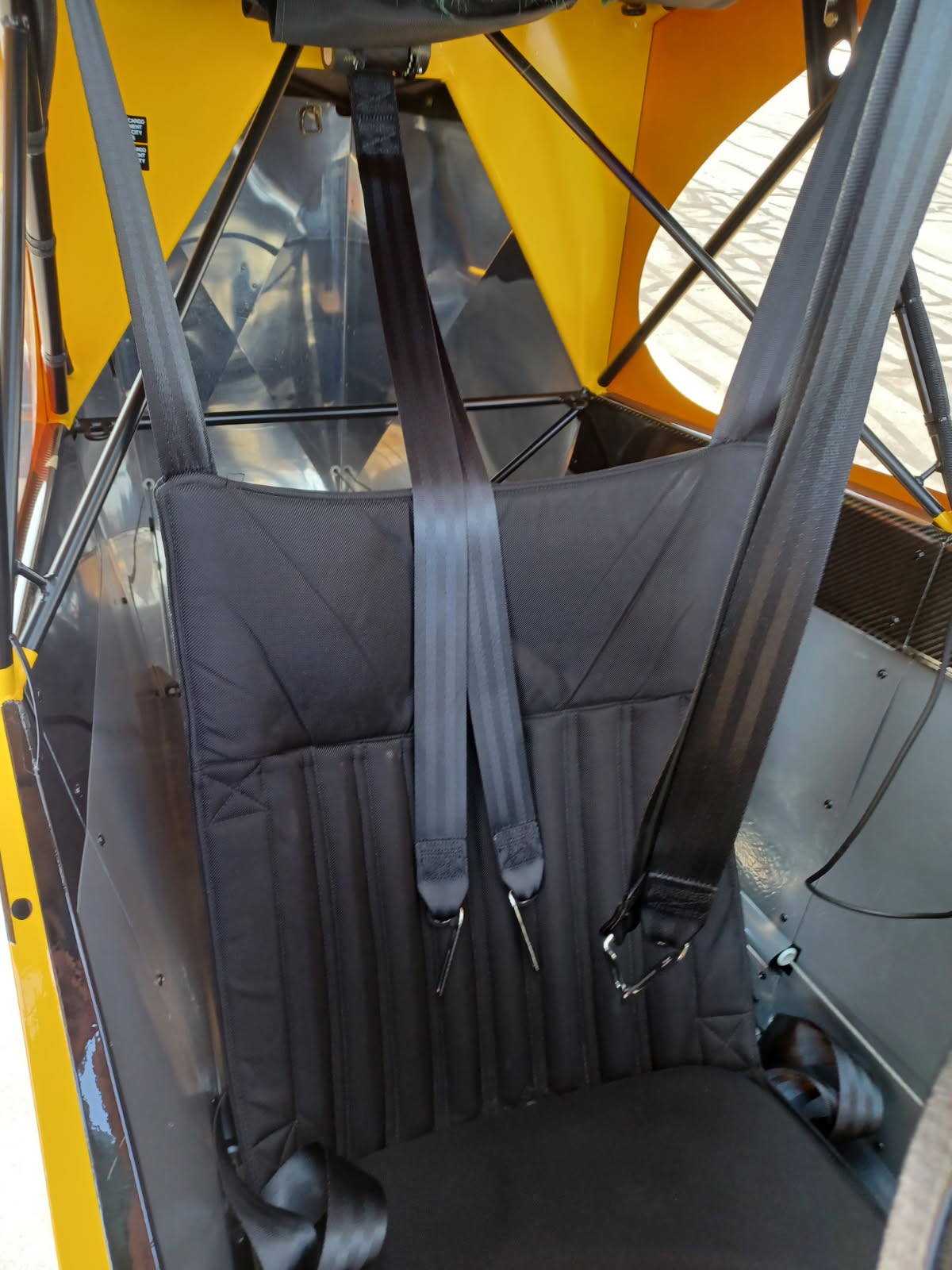

• Oregon Aero Seats – FRONT – fabric
• Oregon Aero Seats – REAR – fabric – Stow-away
• Extended Baggage & Access Door
• Single Seat Convertible Option (stick base cover included)
• Lap belt and inertia reel shoulder harnesses
• Compass
• Full floorboards
• Rear Seat 12V Auxiliary Outlet
• Halon Fire Extinguisher (at pilot seat)
• Rosen Sunvisor
• Overhead Headset Hooks (two each)
• Ignition Status Lights (left / right)
• Carburetor Heat Control
• Mixture control
• Cabin heat control
• Improved Cabin Heat System
• Circuit breakers
• Master switch
• Avionics master switch
• SMARTmonitor©
• 12V auxiliary outlet
• Flat Black Glare Shield
• Dual swing-out windows
• Tinted windows and skylight
• Cabin fresh air vents
• Rear cabin cargo tie down points
• Aft upper baggage area
• Cup/Bottle holder for pilot

LANDING GEAR

• 3×3 Landing Gear – uncovered with SS brake lines
• Alpha Omega Suspension System
• 26” Airstreak Tundra Tires
• 3200-type Steerable Tailwheel
• Grove wheels, double puck brake calipers, & rotors
• Parking brake
• Tailwheel
• Non-skid pilot step

CARBON FIBER / COMPOSITES

• Cowling, air filter box and spinner
• Cowl flaps
• Engine cooling plenum
• Interior panels
• Floorboards and front seat base
• Pilot Seat
• Wingtips
• Aft upper baggage compartment

SAFETY FEATURES

• Front & rear seat inertia reel 4 point harnesses
• LED Lighting & Strobe package
• Audible stall warning horn
• No header tanks
• Kannad 406 Integra ELT (Built-In GPS)
• Visual fuel gauges
• Dual-action safety fuel selector valve
• Complete 4130 reinforced fuselage
• Ignition backup battery system
• SMARTmonitor©

Price: $269,000
