N209W – Carbon Cub SS on Aerocet Amphibious Floats

Overview

  • Location: Yakima, WA
  • Serial: CC11-00300
  • Make: CUBCRAFTERS
  • Model: CC11-160
  • Year: 2014
  • N Number: N209W
  • TTAF: 340 hrs
  • TTE: 340 hrs
  • Engine: Titan CC340 180 horsepower
  • Prop: Catto 80” 50” Pitch Composite Propeller
  • Fuel Capacity: 40 Gallons (two 20 gallon wing tanks)
  • Empty Weight: 1186.5 lbs. (as shown on Aerocet 1500 floats)
  • Gross Weight: 1746 lbs. (Aerocet 1500 floats) or 1865 lbs. (wheels)
  • Last Annual: October 2024
  • Interior Rating: 9
  • Exterior Rating: 9

Description

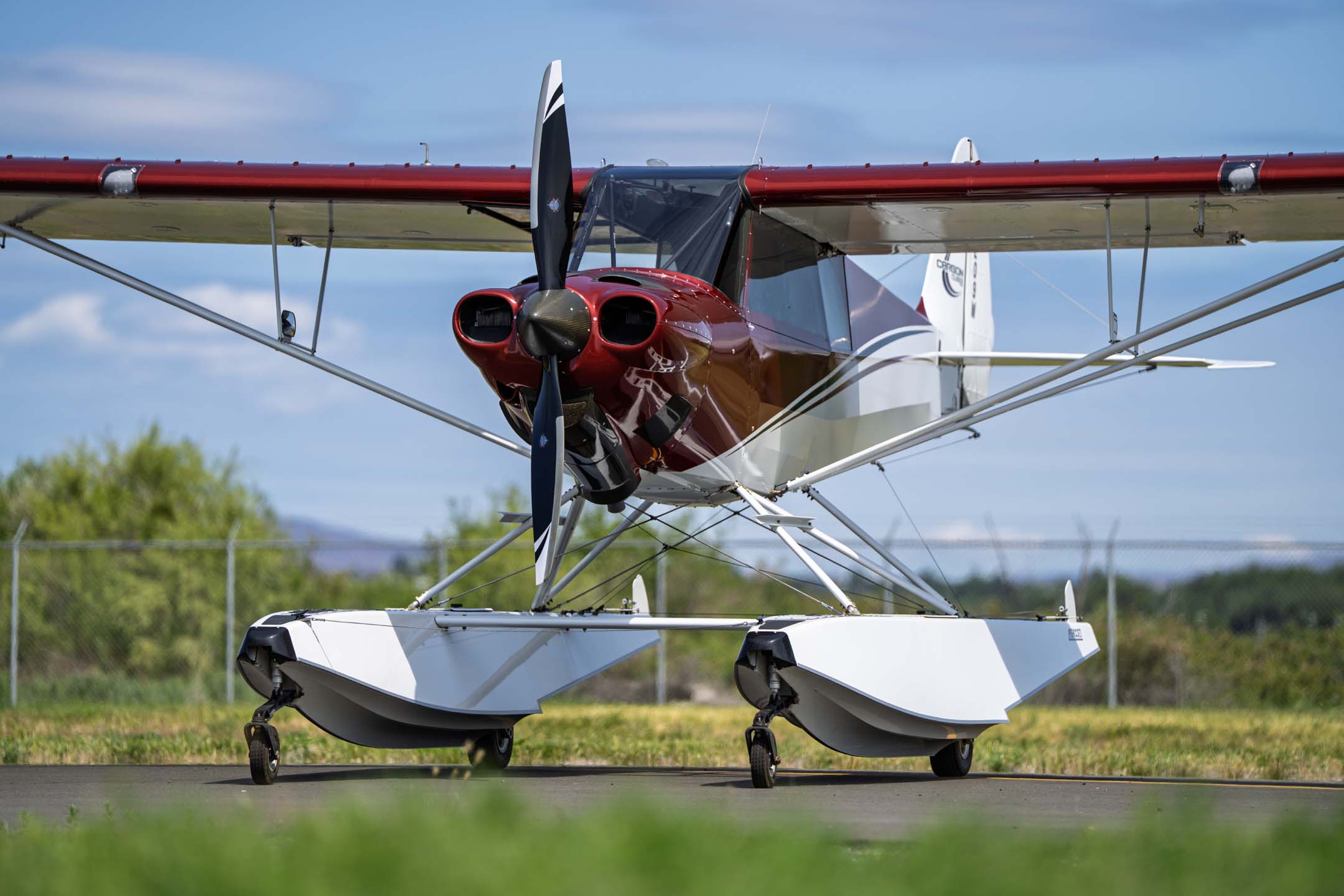

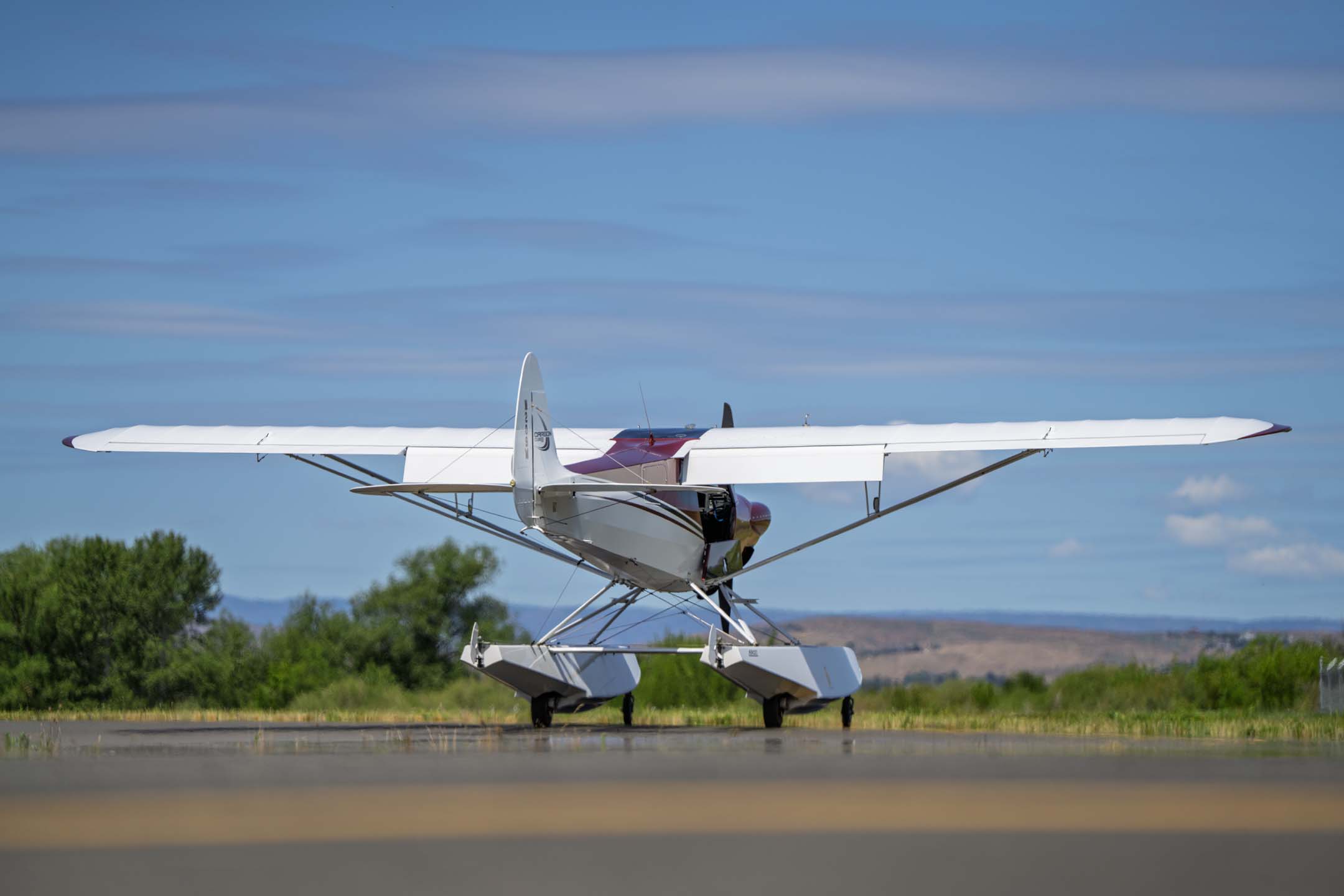

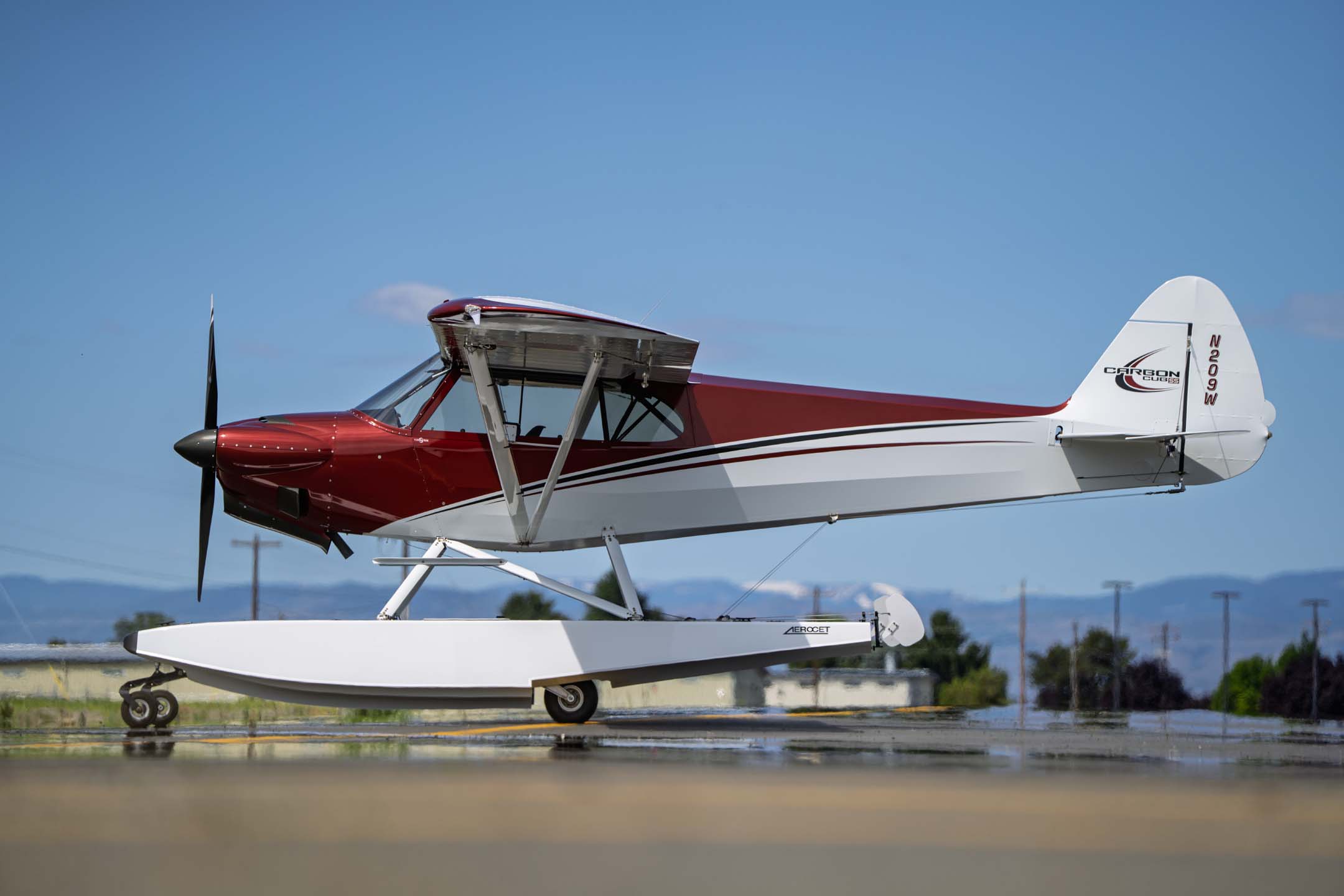

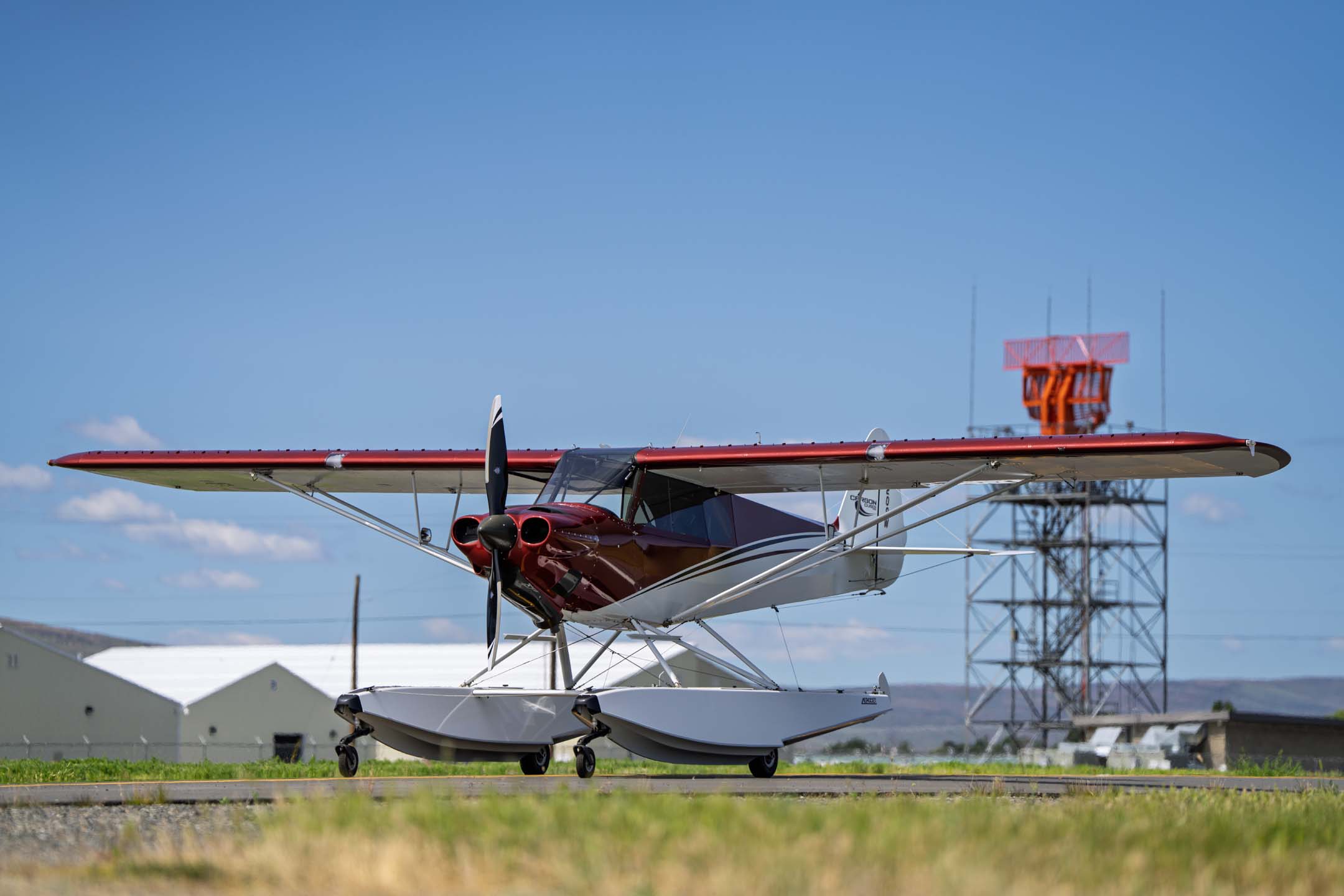

N209W is an absolutely beautiful and pristine 2014 Carbon Cub SS finished in the deluxe premium Volcano Red paint scheme and equipped with Aerocet 1500 Amphibious Floats. With only 340 hours on both the airframe and engine, this aircraft presents in exceptional condition and is ready for immediate adventure. It features the upgraded Garmin G3X Touch avionics package, offering modern navigation and situational awareness in a rugged backcountry platform. Perfectly suited for both water and land operations, N209W also includes a full set of landing gear, cabane vee, 26” Airstreak tundra tires, a 3200-type steerable tailwheel, and AOSS (3×3 version) suspension for the tailwheel configuration—giving you ultimate flexibility to switch between floats and rugged backcountry gear.  This Carbon Cub is your ticket to freedom, versatility, and unforgettable flying experiences.

Aircraft Walk Around

Equipment

• FIREWALL FORWARD

o TITAN® 340CC Engine, 180HP
o Magnesium Accessory Case
o Spin-On Oil Filter & Vernatherm
o Perforated Fuel Nozzle
o Adjustable Cowl Flaps

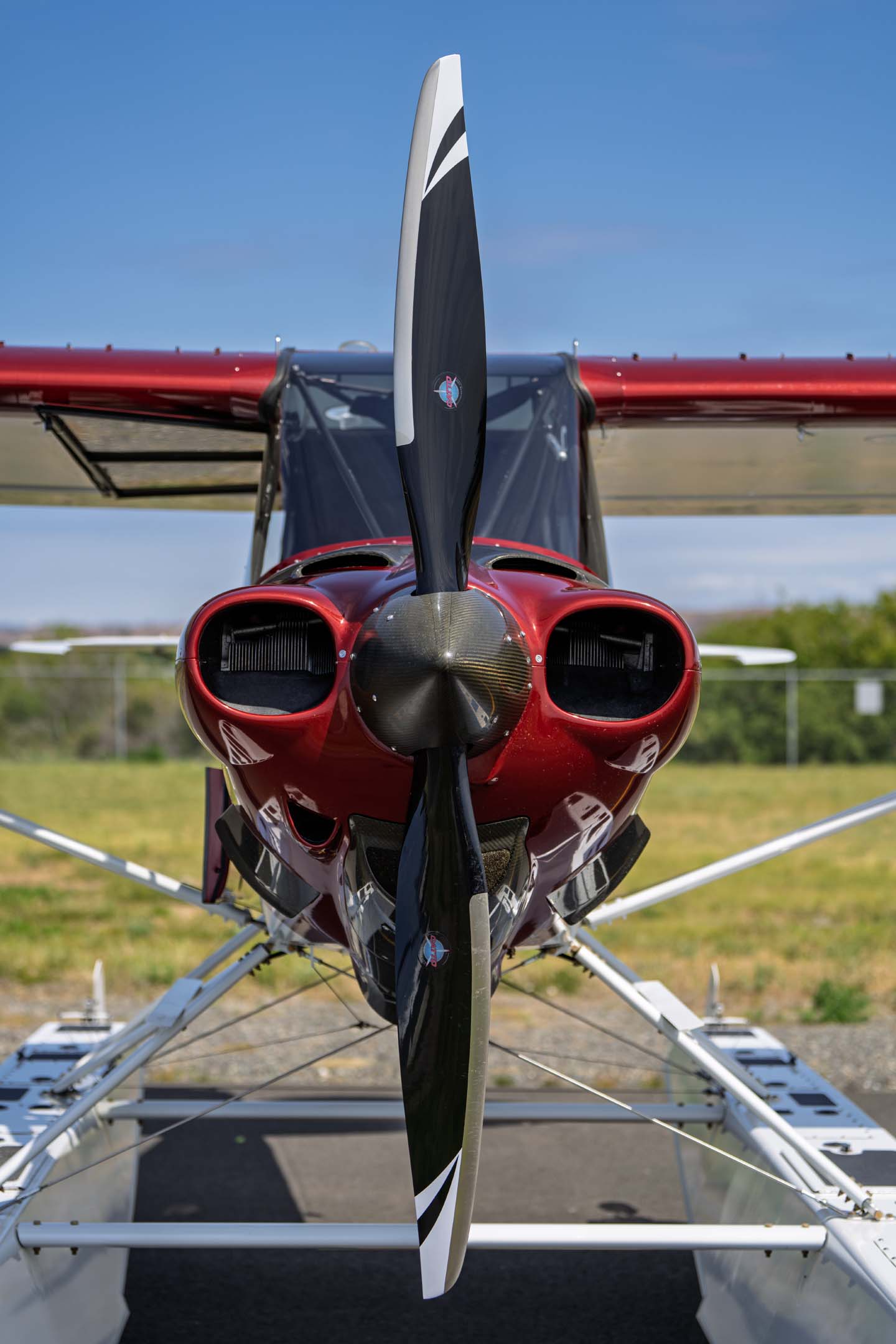

o CATTO Composite Propeller
o Dynamic prop balancing
o Lightweight 40 amp alternator
o Dual Electronic Ignition
o Ignition backup battery system
o Iridium spark plugs
o Lightweight Hartzell Starter
o Carburetor heat

• FUEL SYSTEM

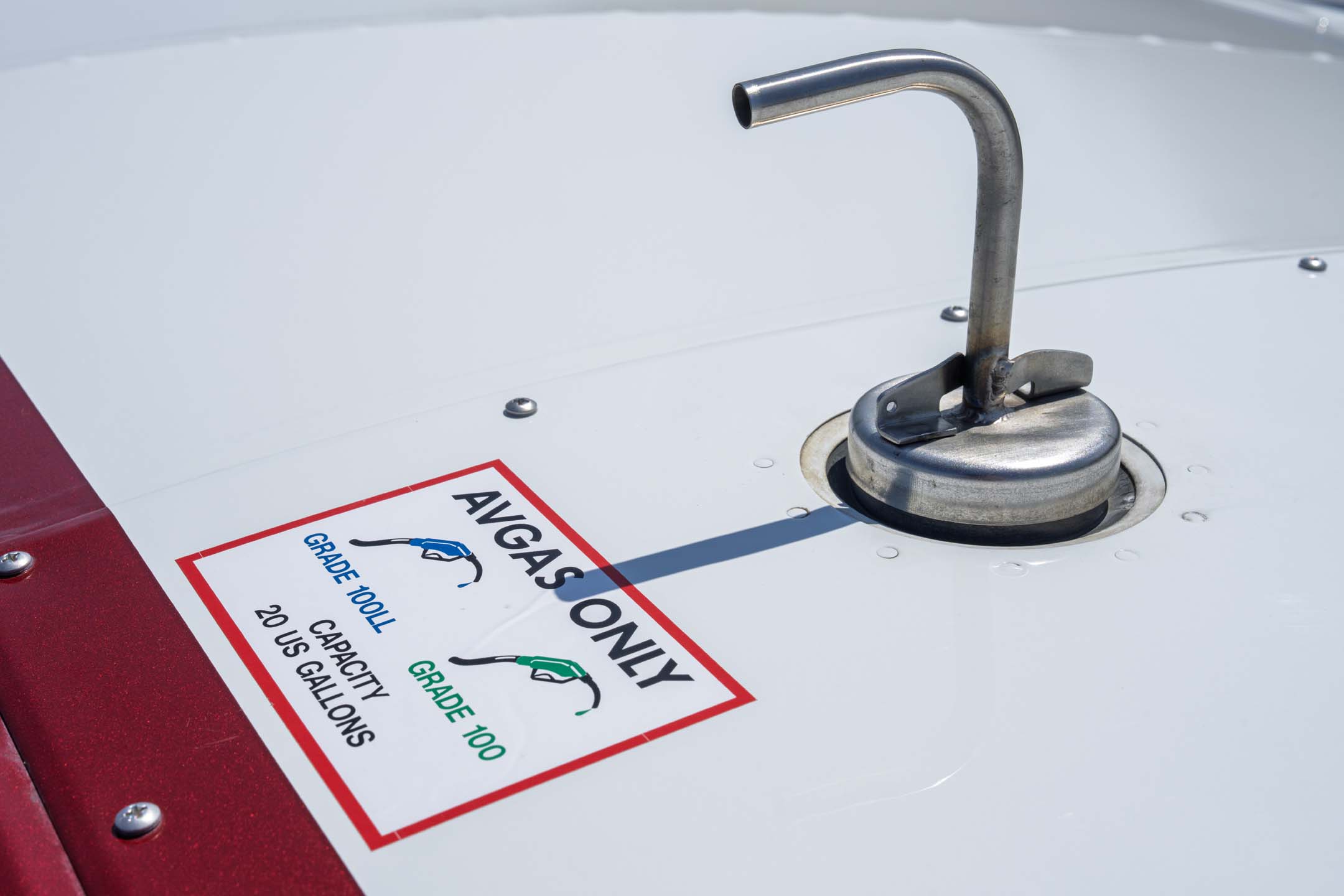

o Two 20 gallon wing tanks (40 gallon capacity) – Extended Fuel Tanks (6 Inspection Covers)

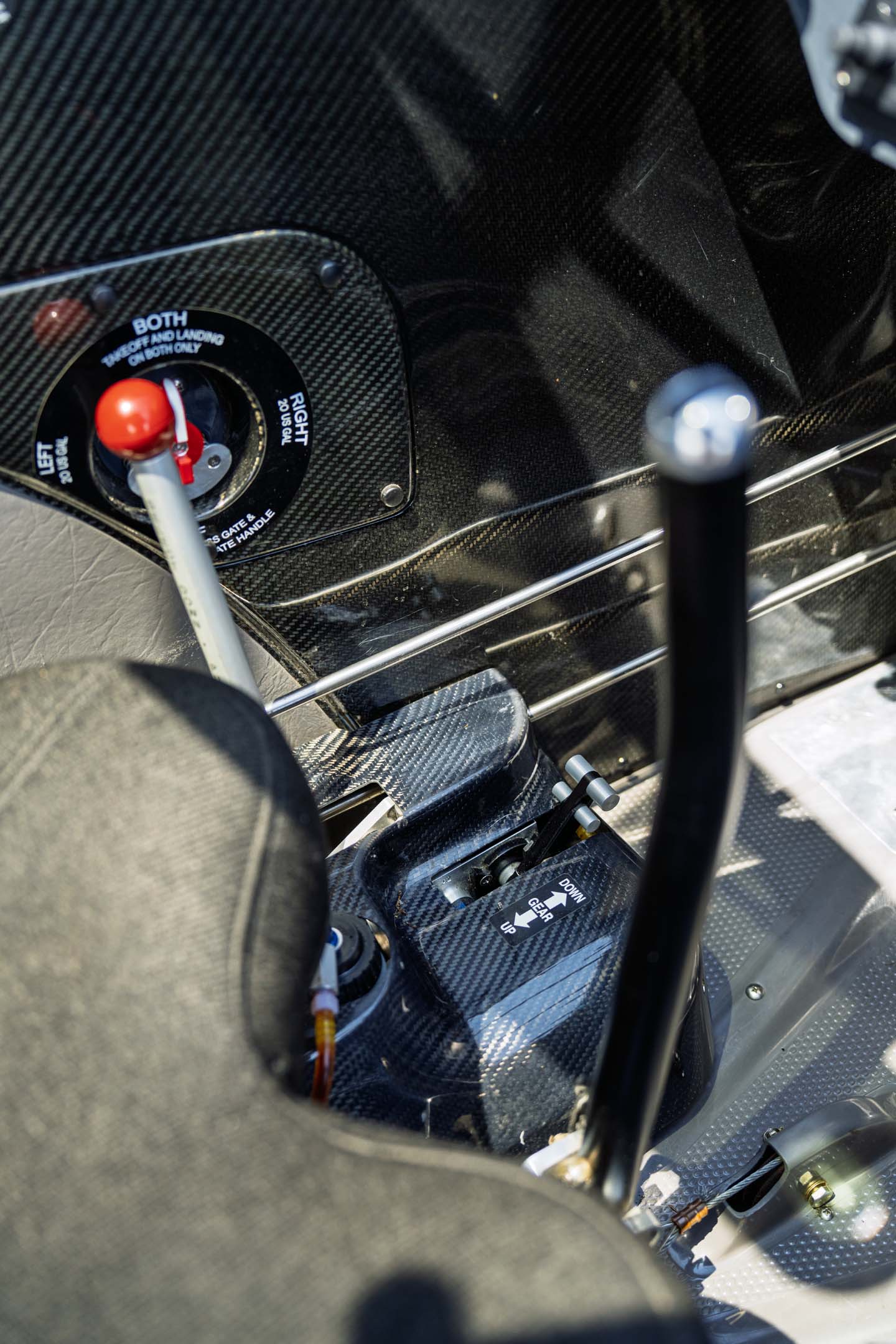

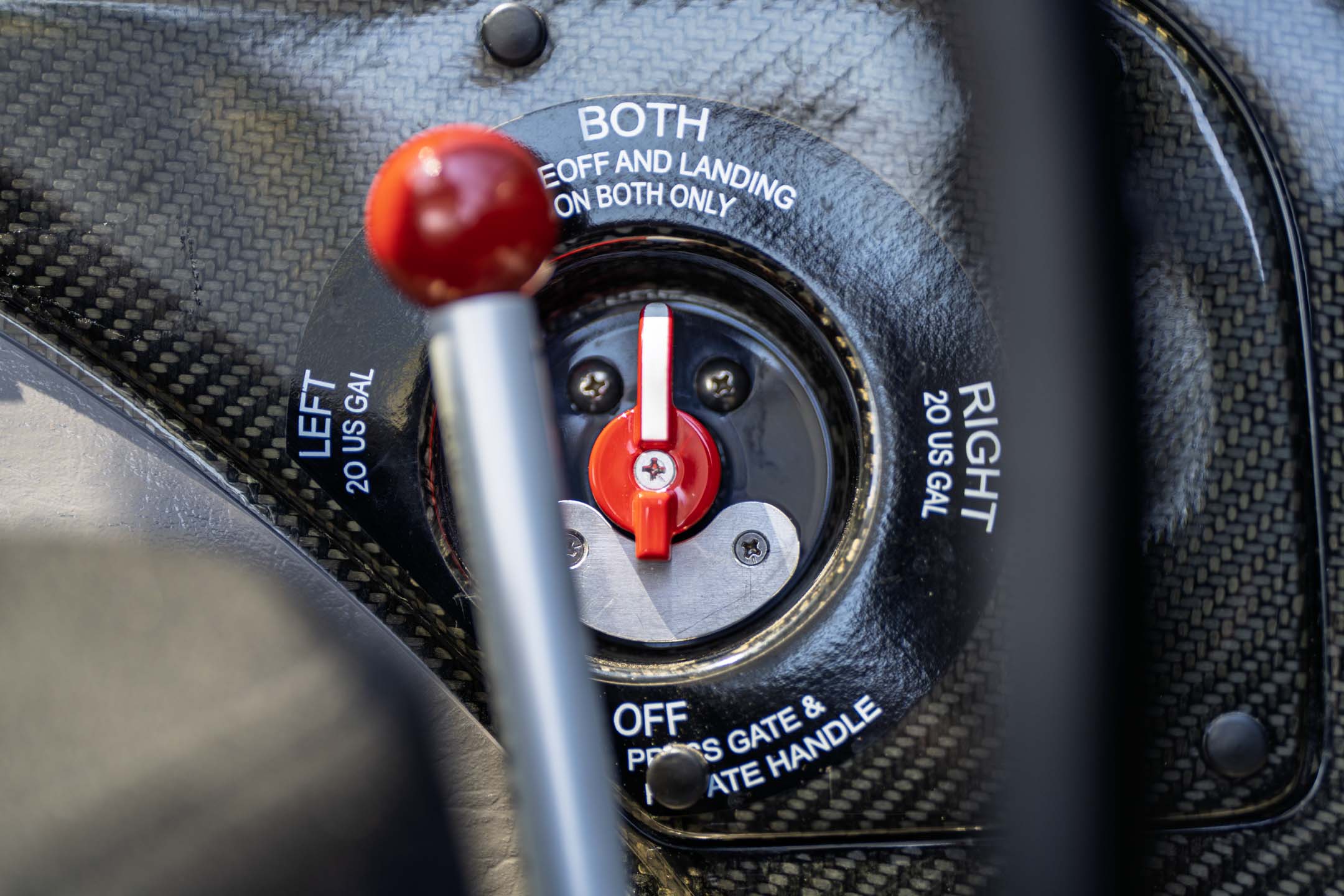

o Fuel selector valve (Left, Right, Off, & Both)
o Gravity feed fuel system
o No header tanks or fuel pump

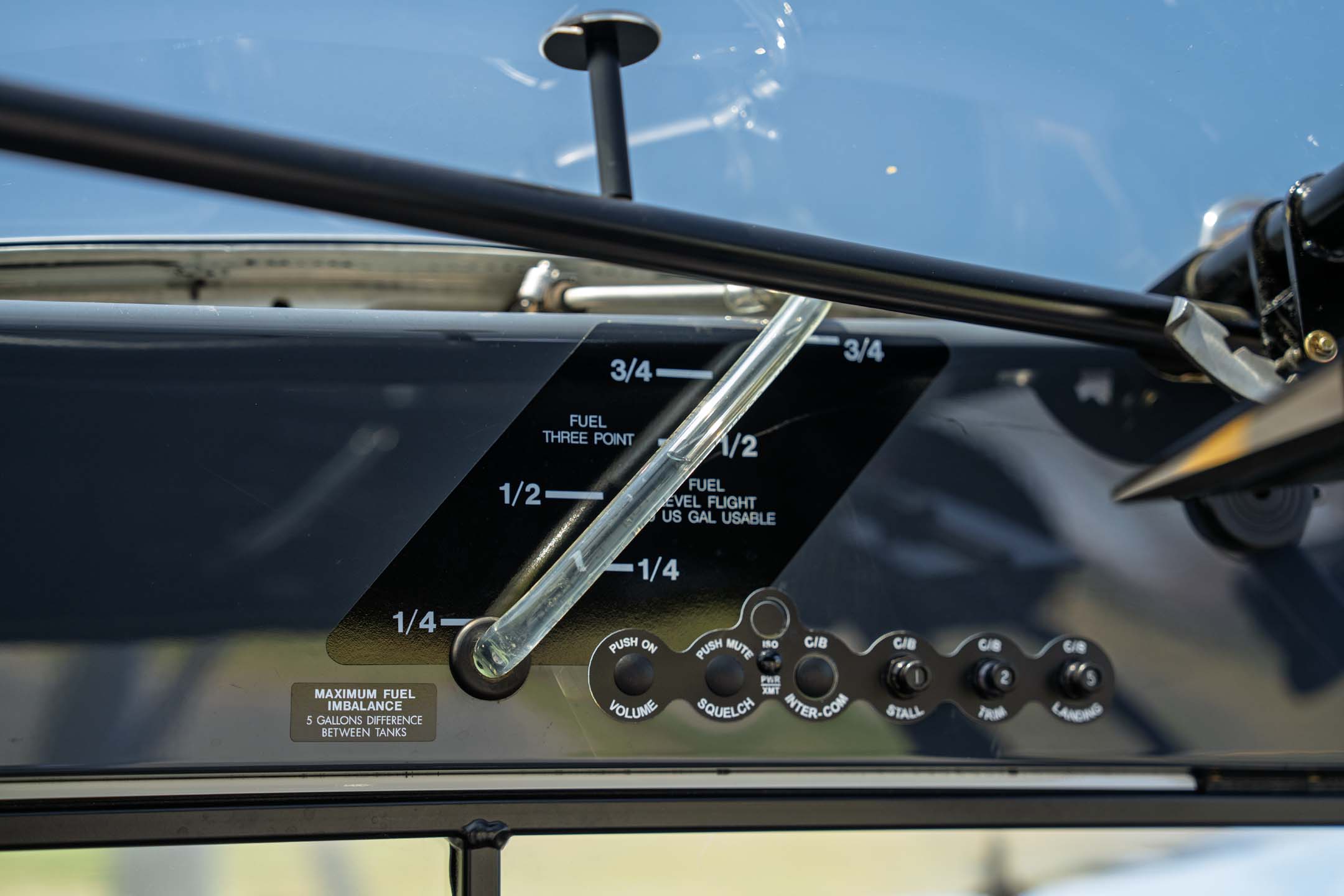

o Fuel sight gauge in wing roots
o Fuel filter and drain
o Primer

• WINGS & TAIL

o Super Cub airfoil – USA35(B)
o Wings tested to 1,865 lbs
o (40% higher than LSA requirements)
o Flaps – Three positions: 15°/30°/50°

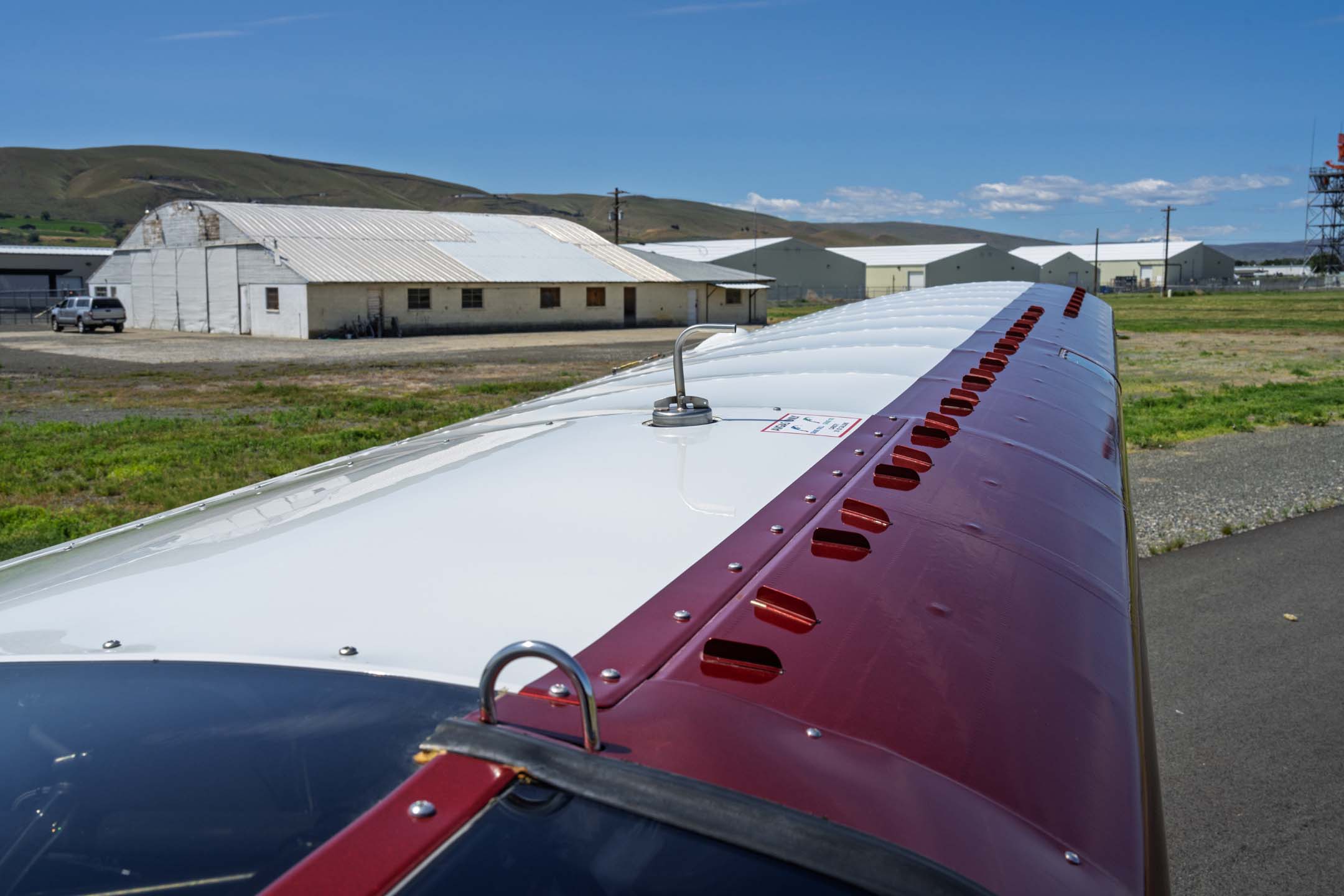

o Vortex generators

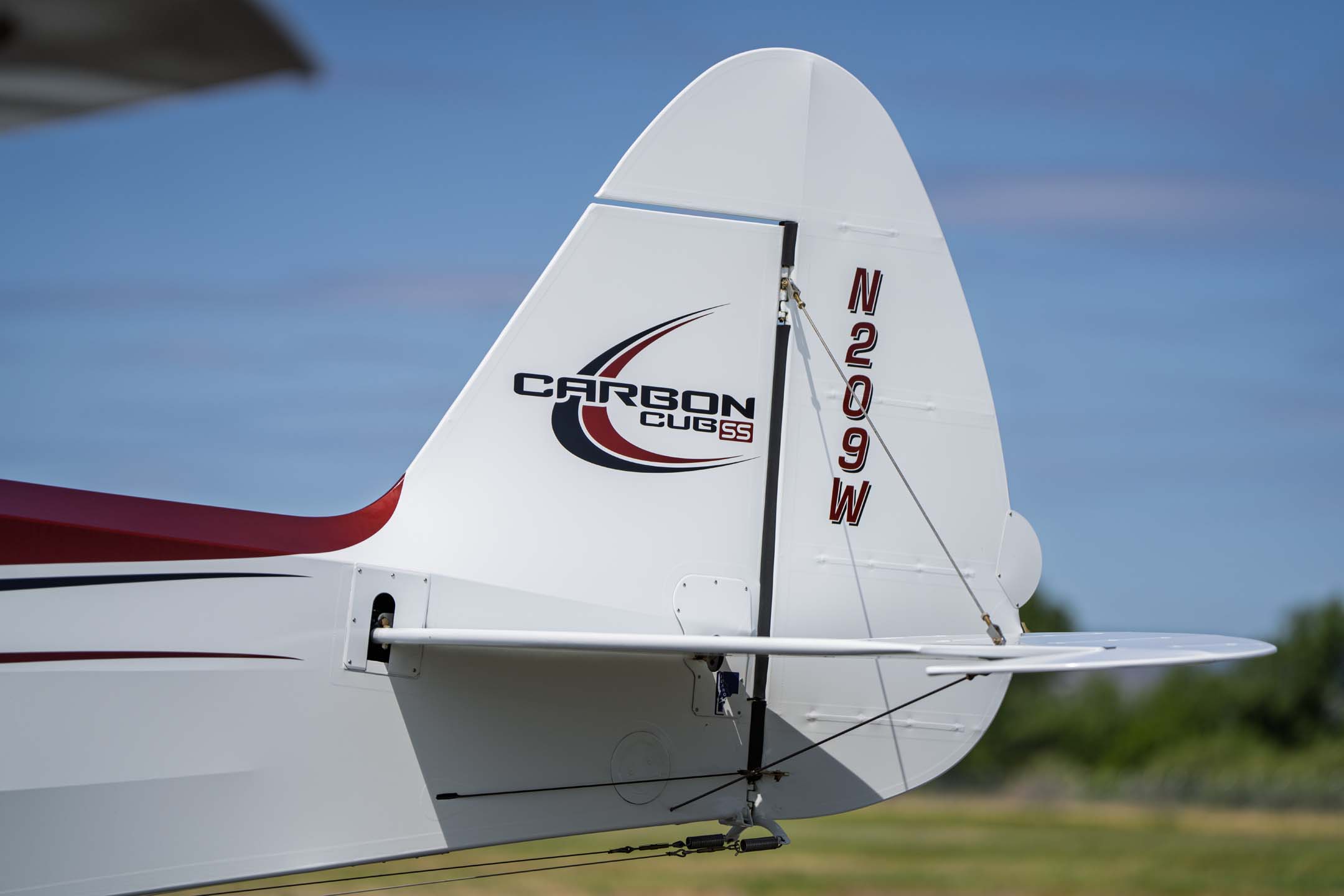

o Aerodynamically balanced tail feathers
o Gap Seals

• AIRFRAME

o Complete 4130 reinforced fuselage tested to 1,865 lbs
o (40% higher than LSA requirements)
o Carbon fiber components

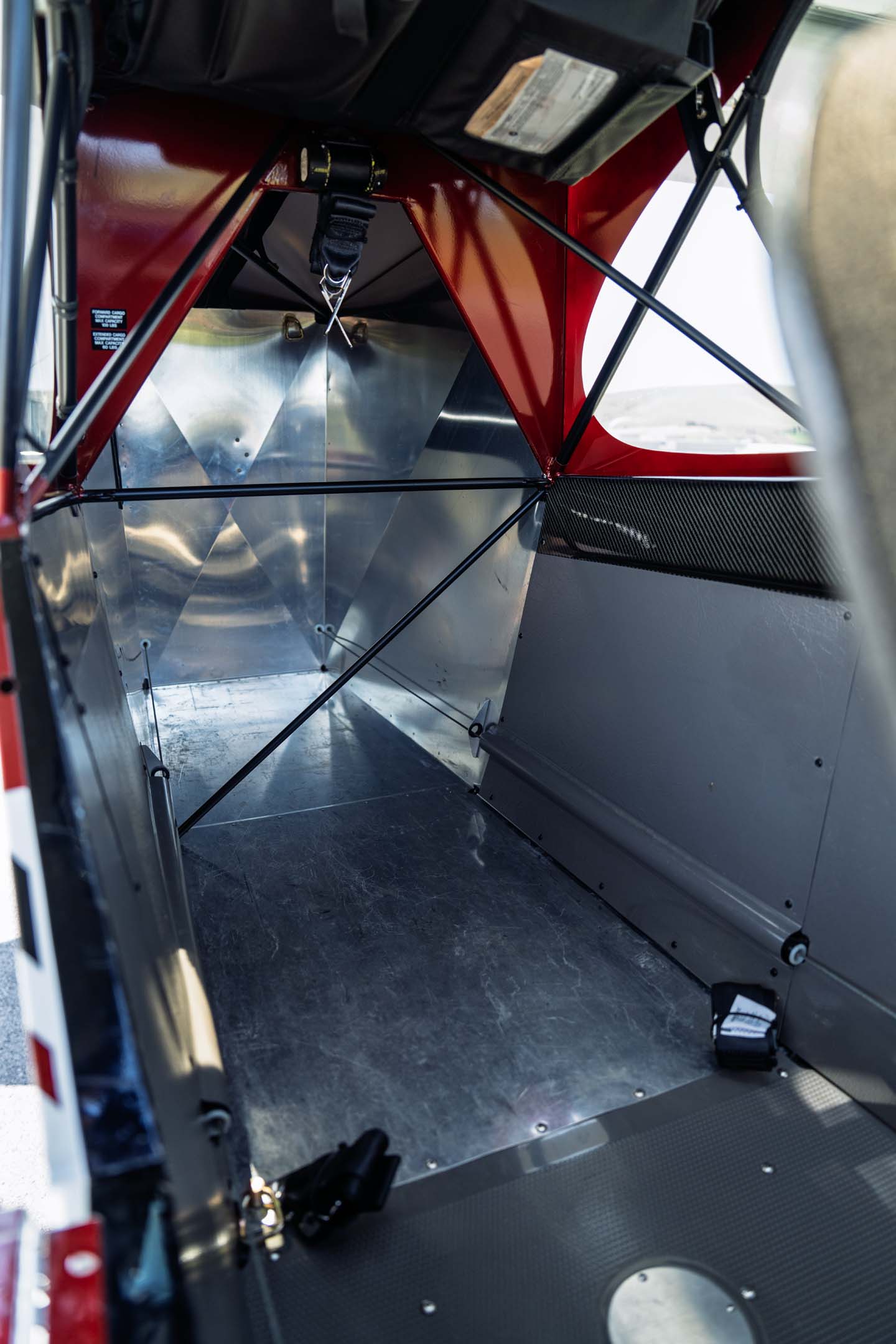

o Extended Baggage Compartment & Access Door
o Front fuel step on landing gear

• AVIONICS

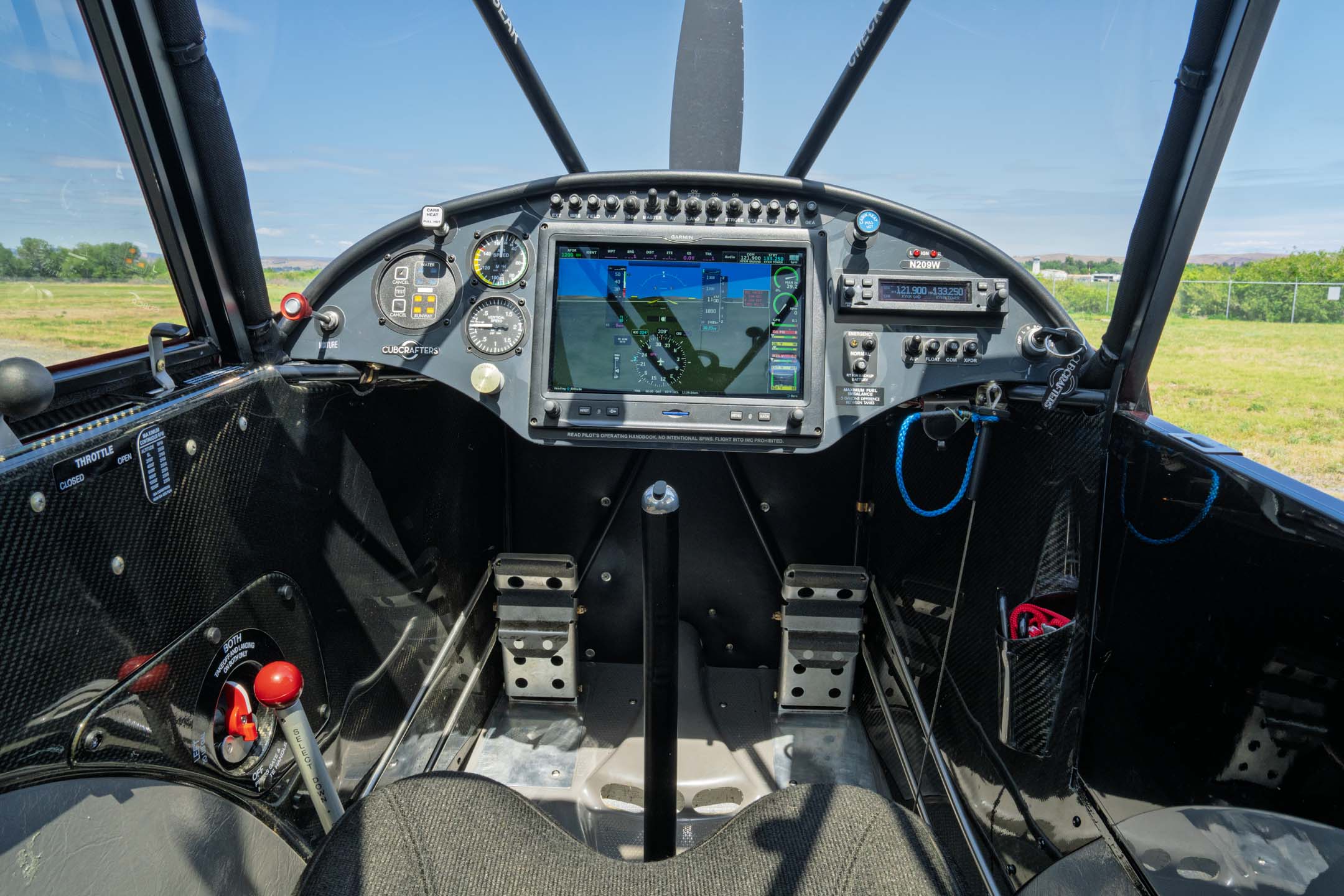

o Garmin G3X Touch System
o GDU 465 Touch Screen Display
o GEA 24 Engine Analyzer
o GSU 25 ADHARS Unit
o GMU 22 Magnetometer

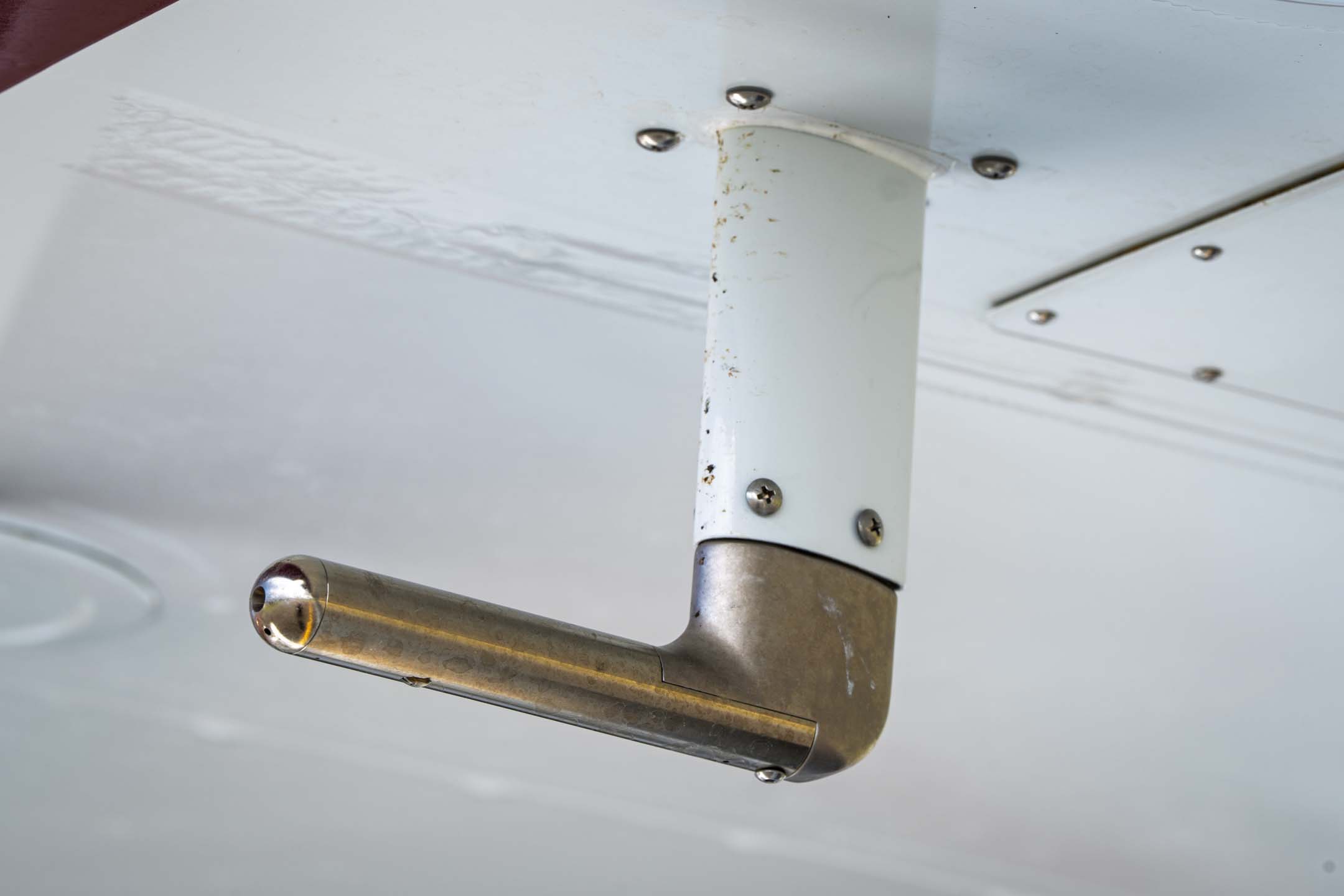

o GAP 26 AOA/Pitot probe
o Garmin GTR 200 Comm Transceiver
o Garmin GTX 23ES transponder
o Garmin Autopilot GSA 28 servos
o 2” Airspeed and 2” Vertical Speed Indicators
o Float Gear Advisory
o uAvionics Skybeacon – wingtip

• FLIGHT CONTROLS & INTERIOR

o Dual flight controls
o Elevator trim
o Dual toe brakes
o Pilot push-to-talk in control stick
o Co-pilot push-to-talk in wing root
o Pilot & co-pilot standard headset jacks in wing root
o Powered ANR headset jacks in wing root (LEMO)
o Adjustable front seat
o Stow-away rear seat
o Lap belt and inertia reel shoulder harnesses

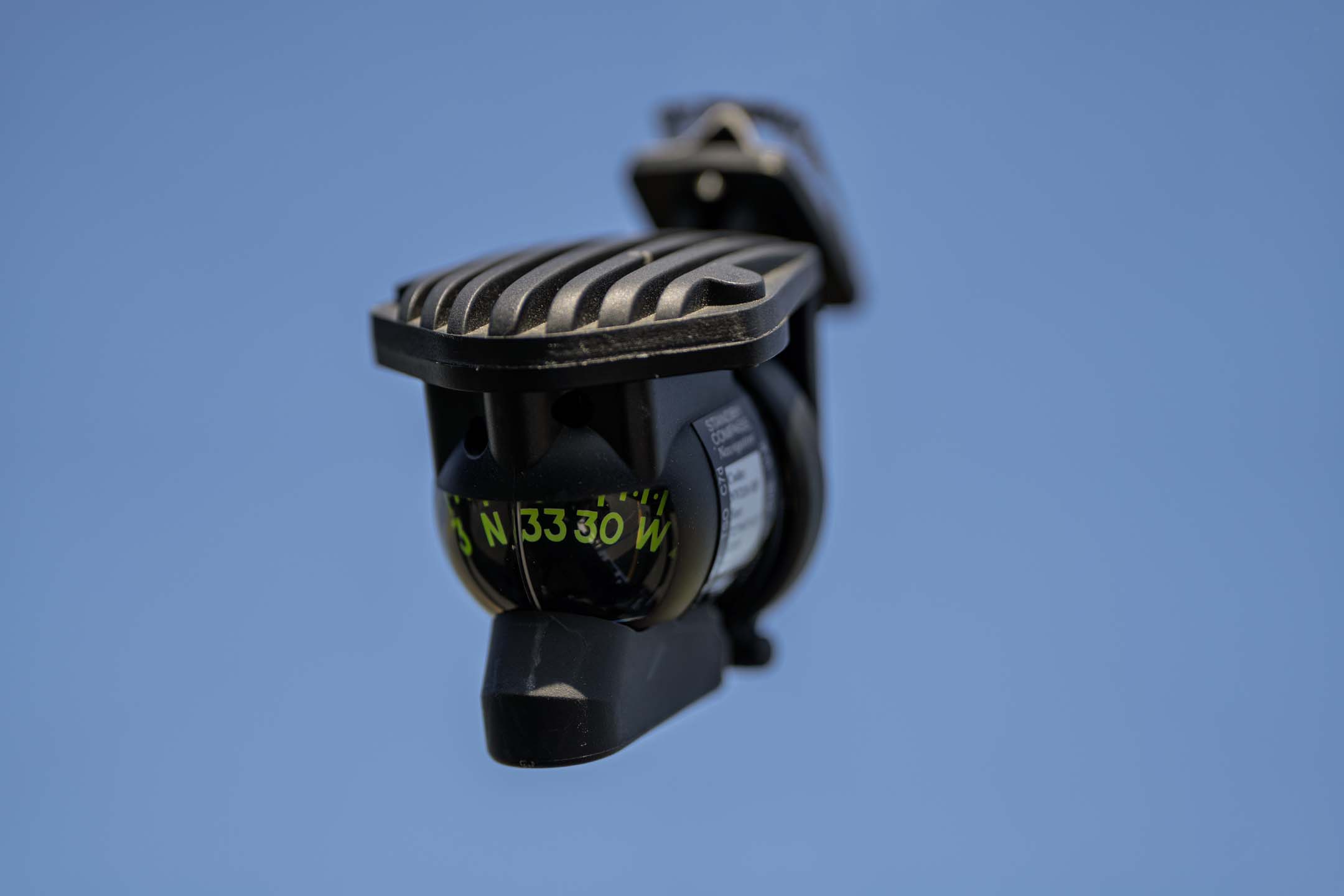

o Compass

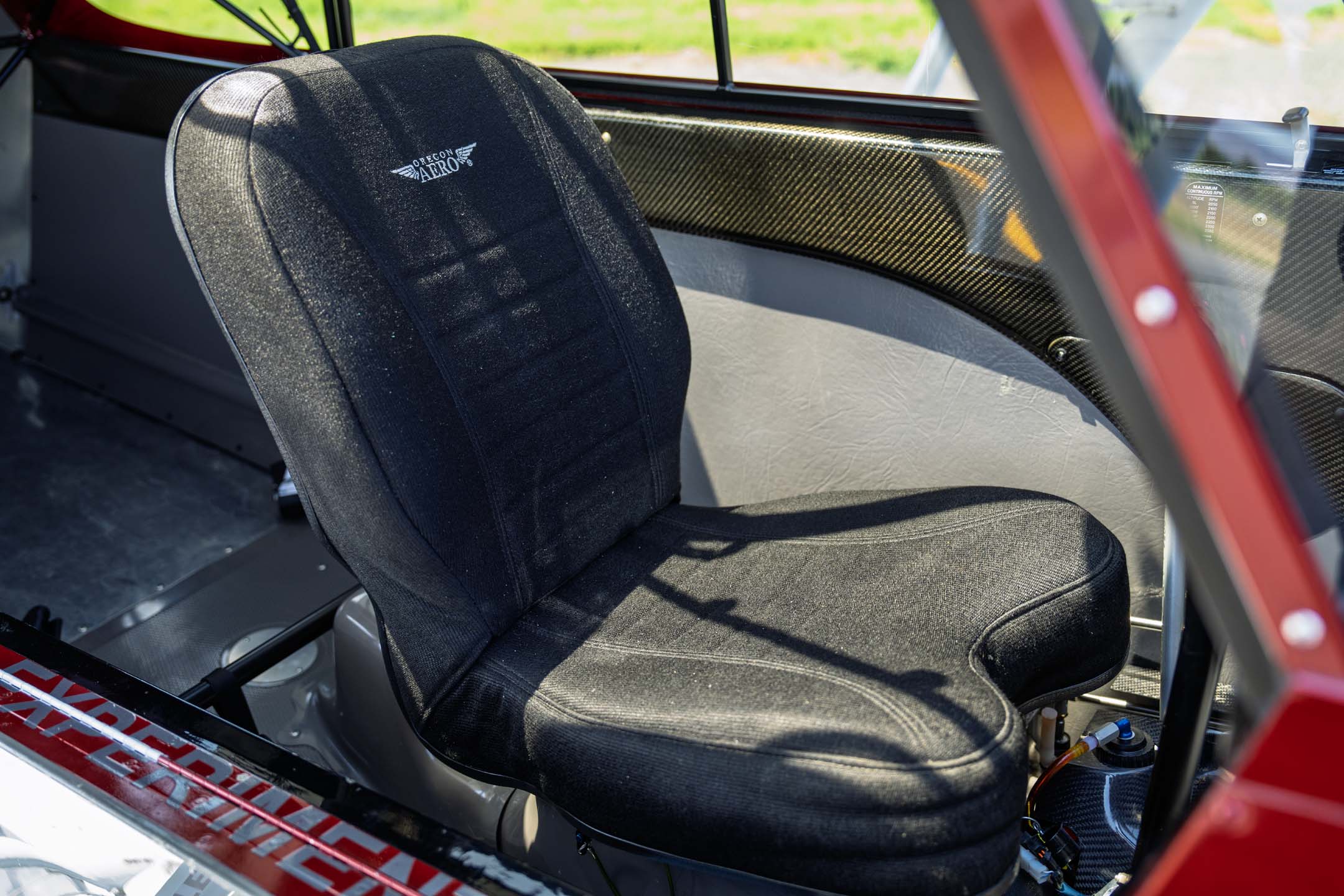

o Oregon Aero Fabric FRONT Seat
o Full floorboards
o Ignition Status Lights (left / right)

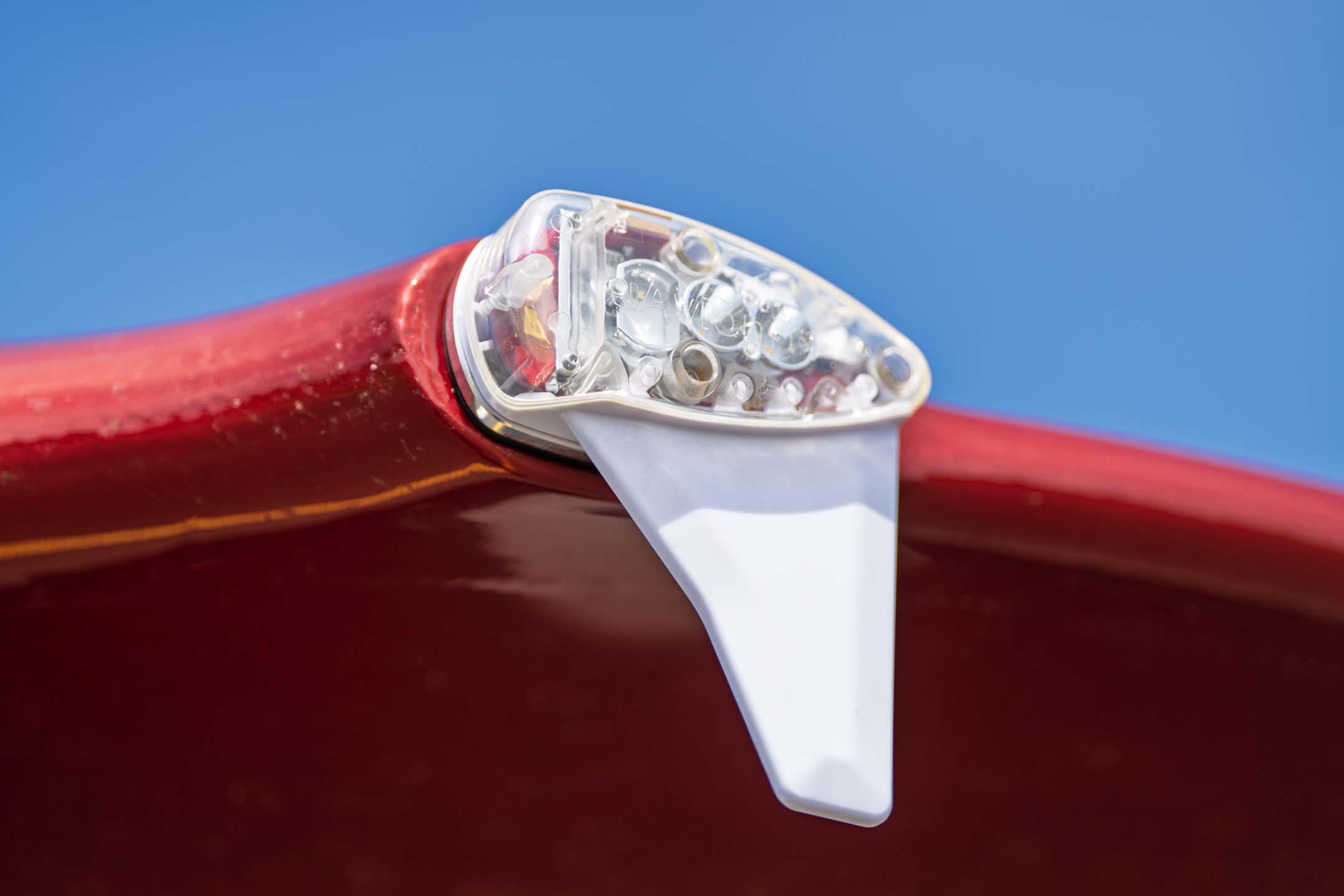

o Symmetric Wing Landing Lights with wig-wag
o Lightweight Light/Strobe PKG
o Carburetor Heat Control
o Mixture control
o Cabin heat control
o Improved Cabin Heat System
o Circuit breakers
o Master switch
o Avionics master switch
o SMARTmonitor©
o 12V auxiliary outlet
o Flat Black Glare Shield

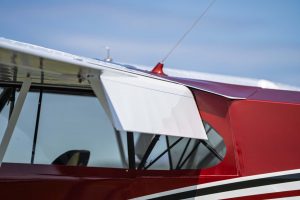

o Dual swing-out windows

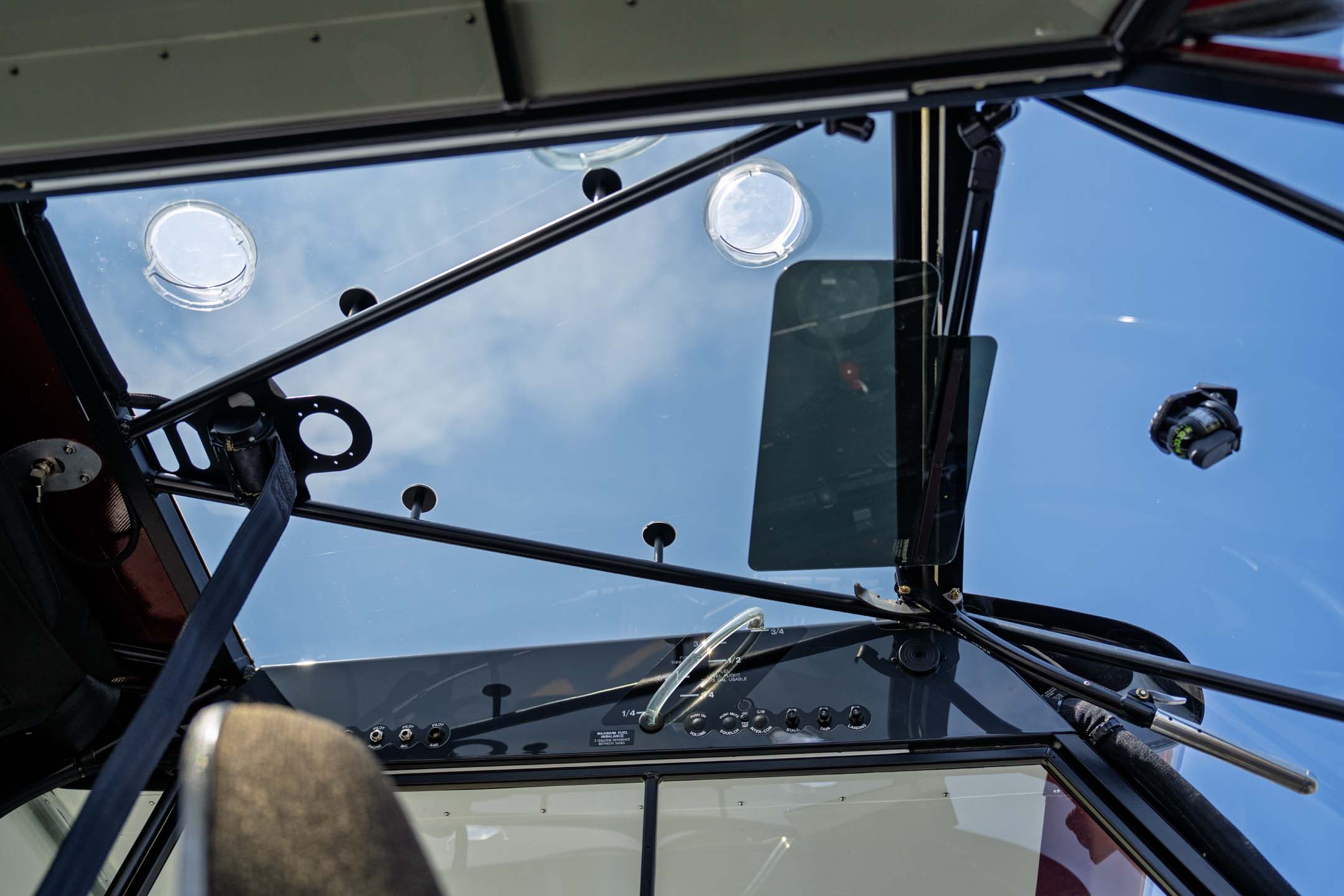

o Tinted windows and skylight
o Cabin fresh air vents
o Rear cabin cargo tie down points
o Aft upper baggage area
o Cup/Bottle holder for pilot

• LANDING GEAR

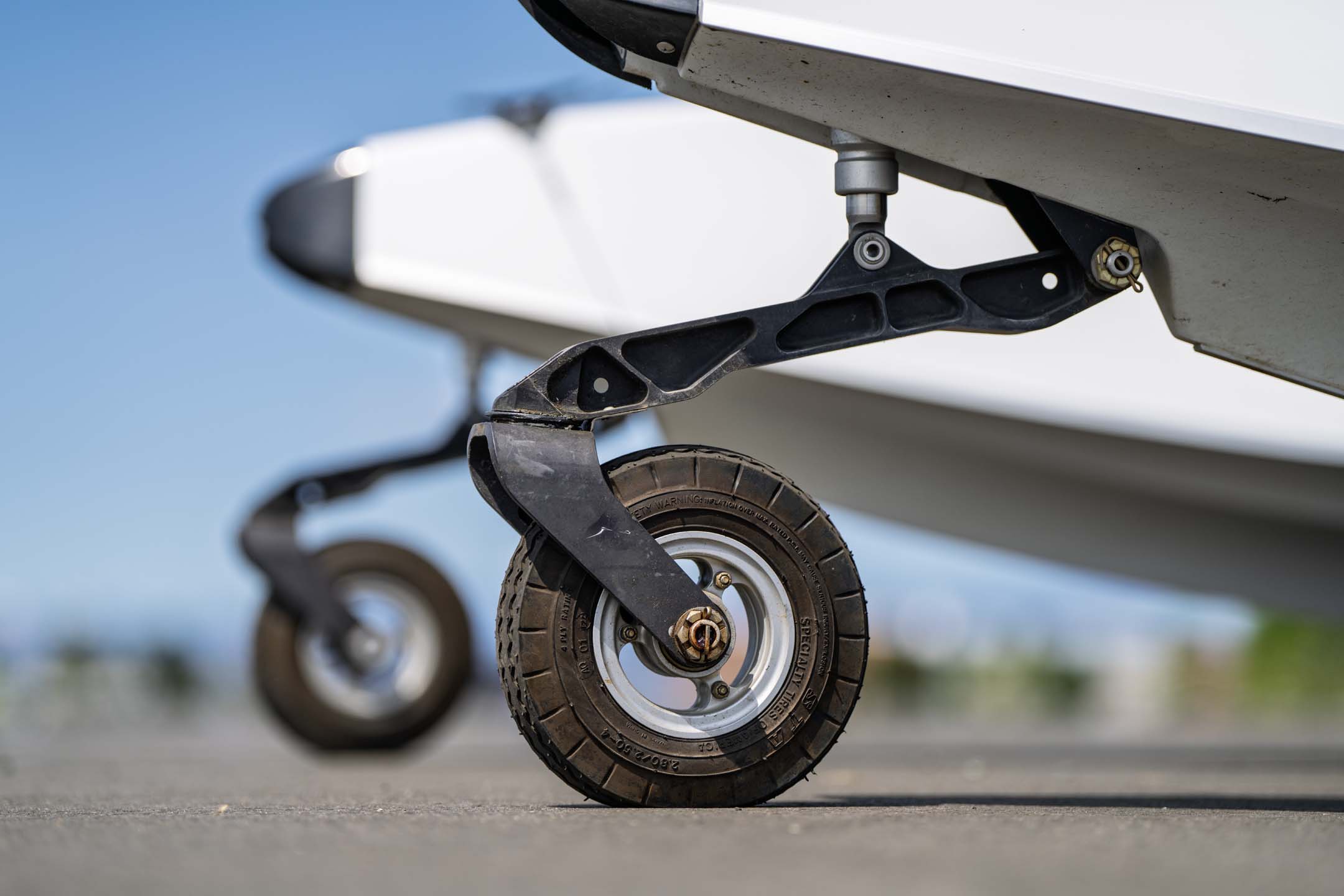

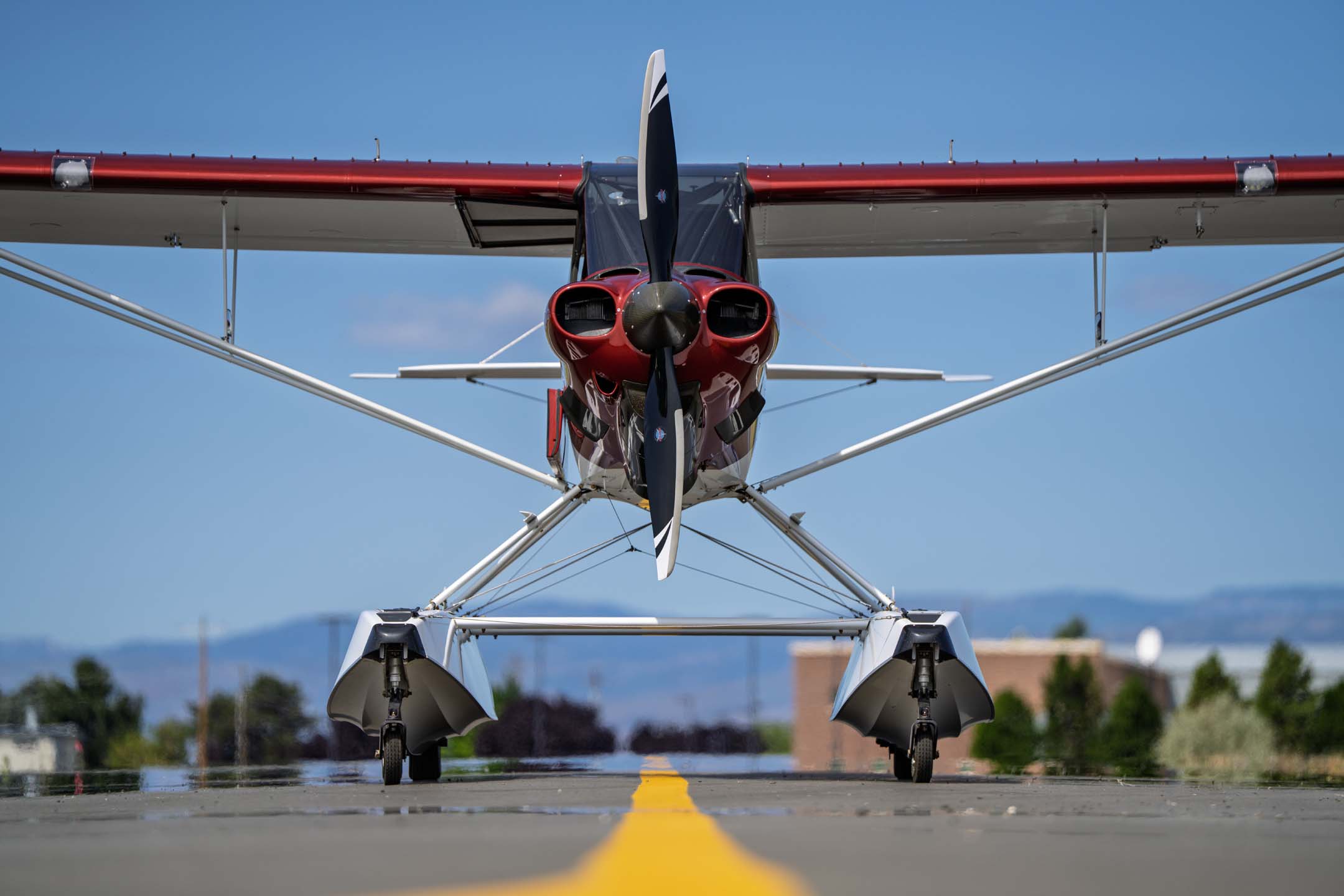

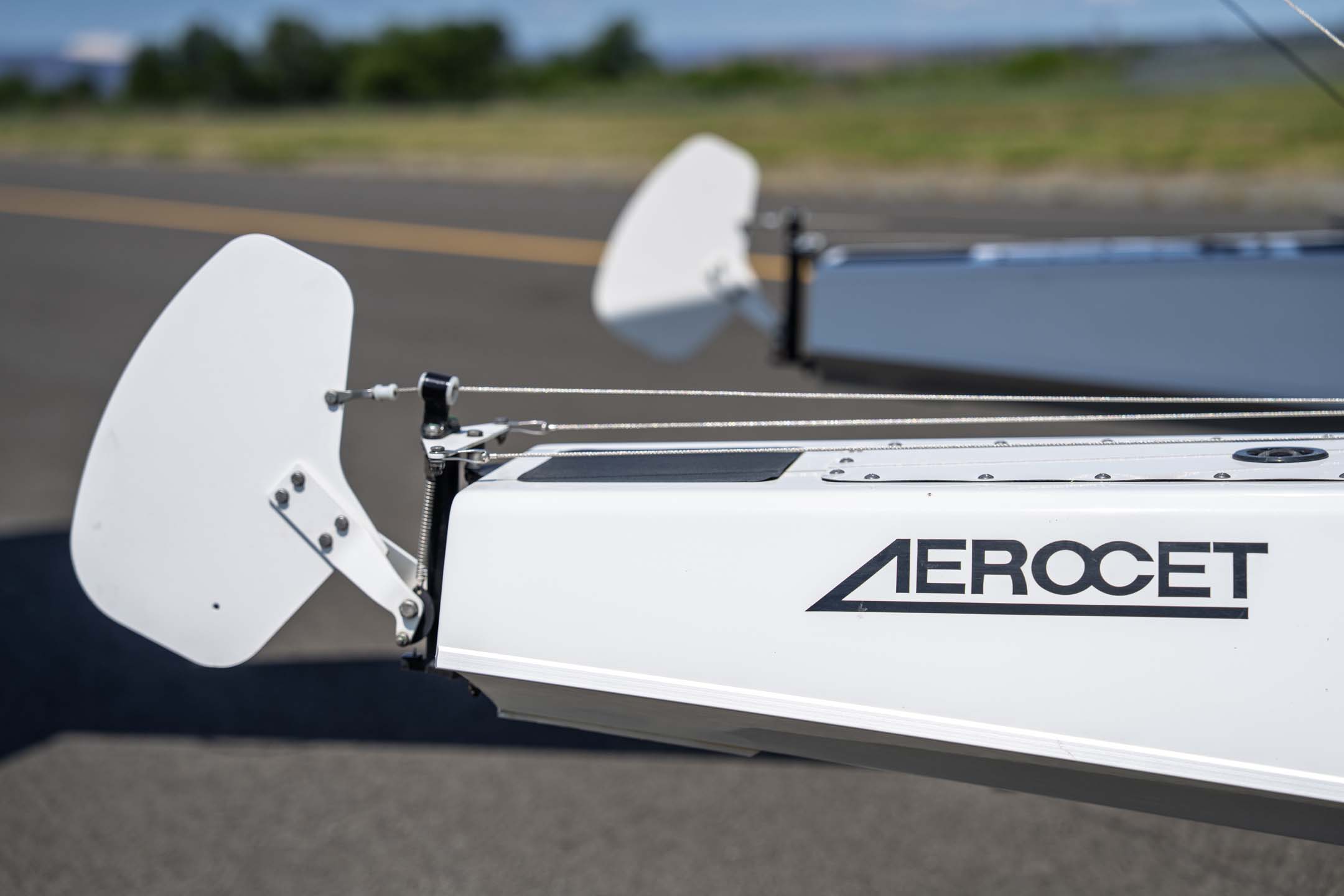

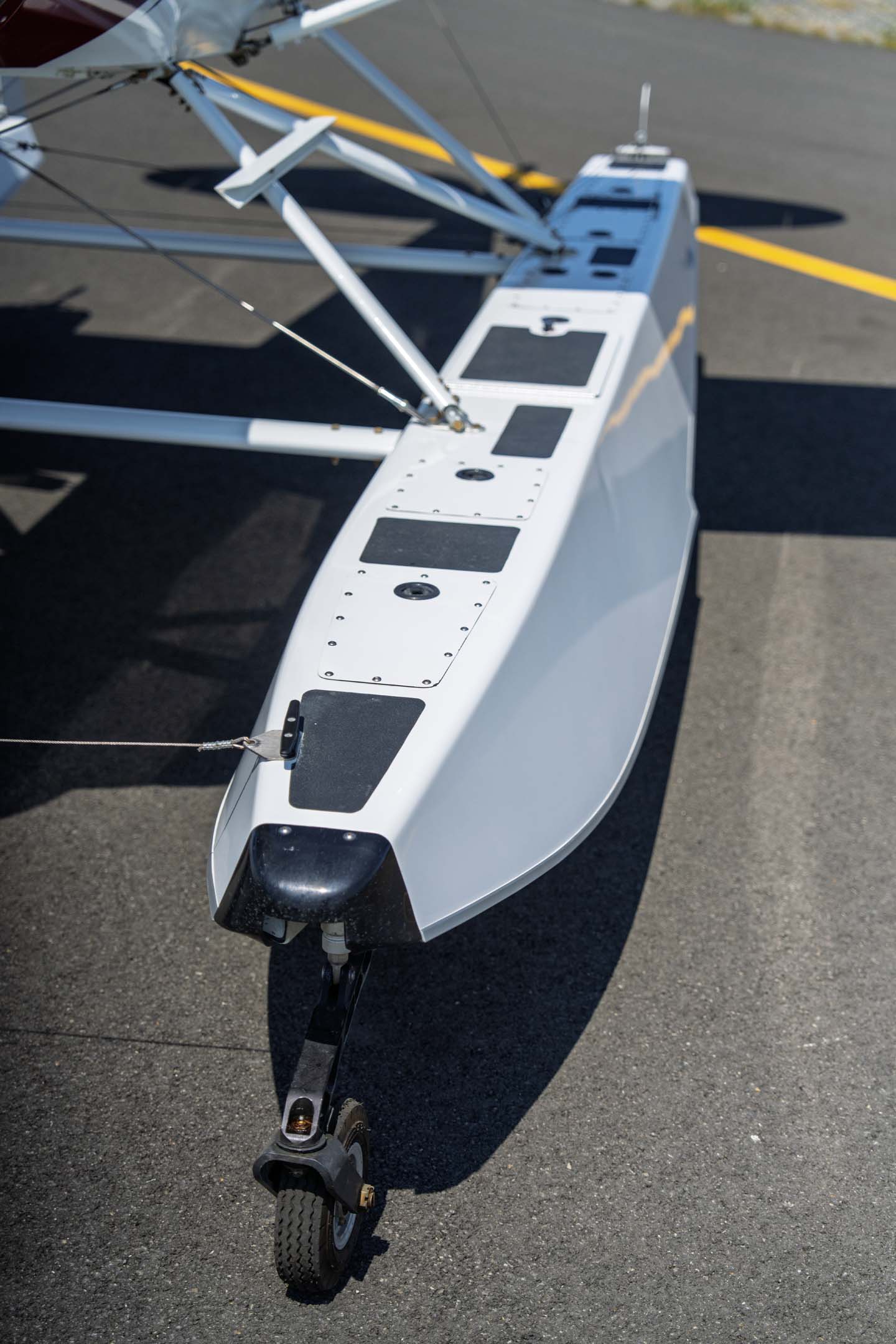

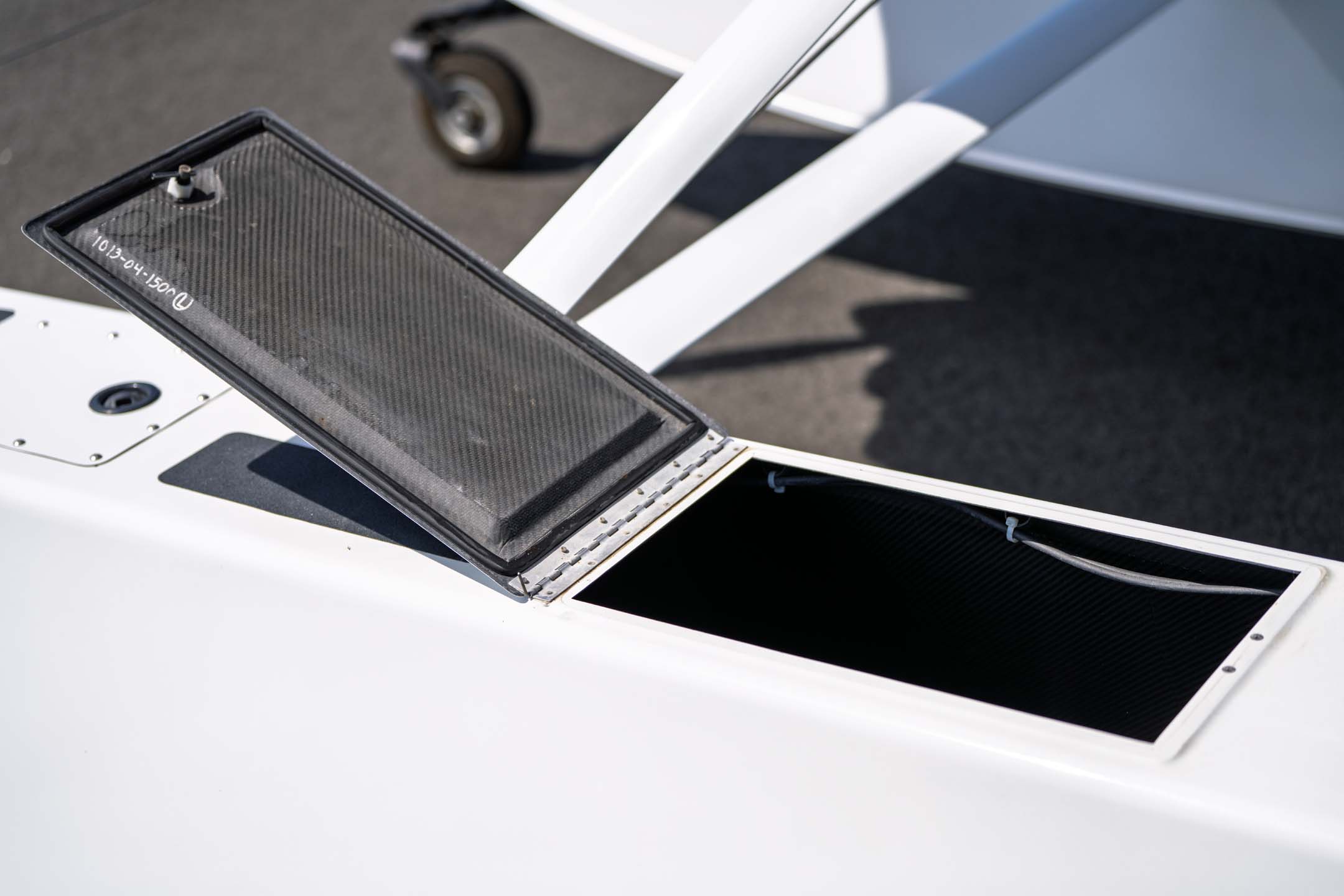

o AEROCET 1500 amphibious floats
o Landing Gear
o Cabane vee
o 26” Airstreak Tundra Tires

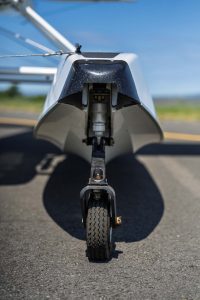

o 3200-type Steerable Tailwheel
o AOSS Gear (3×3 version)

• CARBON FIBER / COMPOSITES

o Cowling, air filter box and spinner
o Cowl flaps
o Engine cooling plenum
o Interior panels
o Floorboards and front seat base
o Pilot Seat
o Wingtips
o Aft upper baggage compartment

• SAFETY FEATURES

o Front & rear seat inertia reel 4 point harnesses
o Audible stall warning horn
o No header tanks
o Kannad 406 Integra ELT (Built-In GPS) & Antenna
o Visual fuel gauges
o Halon Fire Extinguisher
o Dual-action safety fuel selector valve
o Complete 4130 reinforced fuselage
o Ignition backup battery system
o SMARTmonitor©

Price: $320,000
