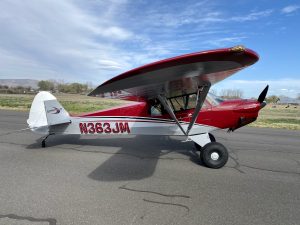

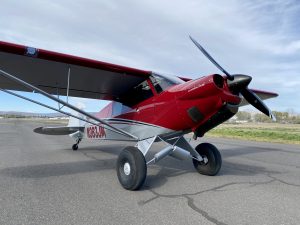

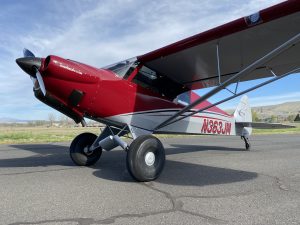

N363JM – Great Price on a Low Time Carbon Cub!

Overview

  • Location: CubCrafters Factory - Yakima, WA
  • Serial: CC11-00363
  • Make: CubCrafters
  • Model: Carbon Cub SS
  • Year: 2015
  • N Number: N363JM
  • TTAF: 206.5 Hours (tach)
  • TTE: 206.5 Hours (tach)
  • Engine: CC-340 (180 HP)
  • Prop: Catto 80x50 NLE - Dynamically Balanced
  • Fuel Capacity: 25 Gallons (optional belly pod offers 25+ gallon additional capacity)
  • Empty Weight: 964 lbs.
  • Gross Weight: See ELSA Operational Limits
  • Last Annual: March of 2020
  • Interior Rating: 8.5/10 (very good to excellent / minor wear only)
  • Exterior Rating: 9/10 (excellent / minor cosmetic squawks only)

Description

Ready for spring flying, this is a great price on a super-nice low time Carbon Cub! Always having been hangared by previous owners, this aircraft is in excellent mechanical and cosmetic condition. The aircraft has been plumbed for an optional fuel pod and comes with a TruTrak autopilot if long-range missions are desired. Sold with a fresh (March 2020) annual completed by the Carbon Cub experts at the CubCrafters Factory Service Center.

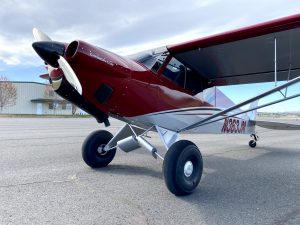

Please note: Photos show the aircraft on Goodyear 8.50 X 6 Tires, but the airplane has since been upgraded to 26″ Airstreak tundra tires. Used 29″ Airstreak tundra tires are also available if preferred for minimal additional charge.

Equipment

FIREWALL FORWARD

TITAN® 340CC Engine, 180HP
Improved post-2014 Composite Cowling
Magnesium Accessory Case
Spin-On Oil Filter & Vernatherm
Perforated Fuel Nozzle
Adjustable Cowl Flaps
CATTO Composite Propeller (dynamically balanced)
Lightweight 40 amp Alternator
Dual Electronic Ignition w/backup Battery System
Iridium Spark Plugs
Lightweight Hartzell Starter

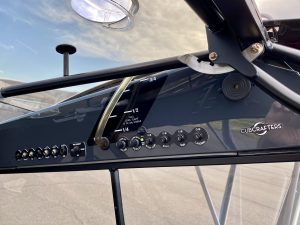

Pilot Controlled Carburetor Heat

FUEL SYSTEM

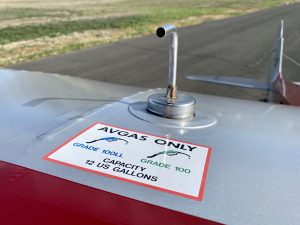

Two 12.5 gallon wing tanks (25-gallon capacity)

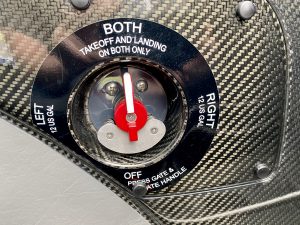

Fuel Selector Valve (Left, Right, Off, & Both)
Gravity Feed Fuel System – No Header Tanks or Fuel Pump
Fuel Sight Gauges in Wing Roots
Fuel Filter and Low Point Drains
Cold WX Engine Fuel Priming System
Aircraft Plumbed for Auxiliary Fuel Belly Pod (25+ gallons)
Front Fuel Step on Landing Gear

AIRFRAME

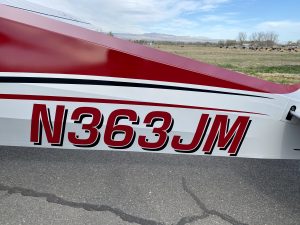

CubCrafters Signature Paint Scheme – Crimson over Silver Urethane Paint
Medium-weight PolyFiber Fabric Covering
4130 Chromoly Steel Fuselage Tested to 1,865 lbs (40% higher than LSA requirements)

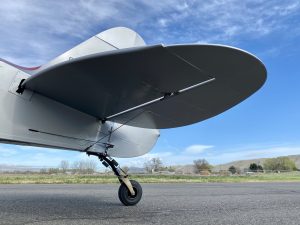

WINGS & TAIL

Super Cub Airfoil – USA35(B)
Aluminum/Composite Wing Structure Tested to 1,865 lbs (40% higher than LSA requirements)
Flaps – Three Positions: 15°/30°/50°

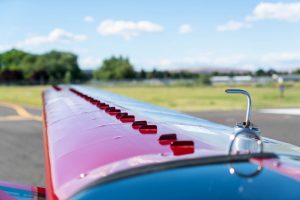

Full Span Vortex Generators Both Wings

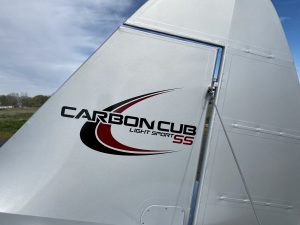

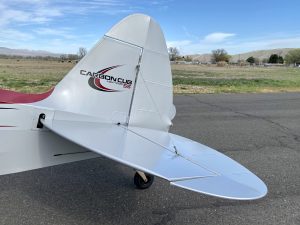

Aerodynamically Balanced Empennage / Tail Section

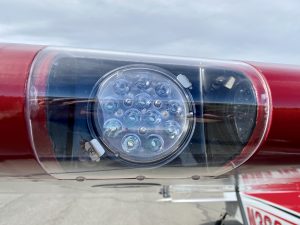

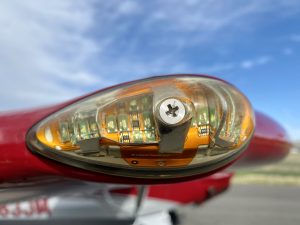

Lightweight LED Landing Light & Strobe Package

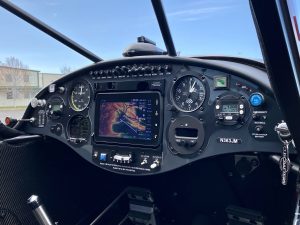

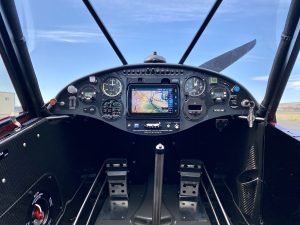

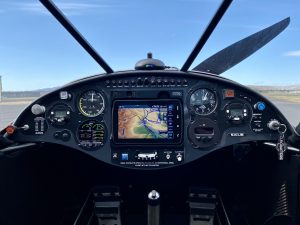

INSTRUMENT PANEL

CubCrafters World VFR Upgrade
Garmin aera™ 796
Garmin GDL39 3D ADS-B Reciever
Trig TY91 VHF Radio – 2¼”

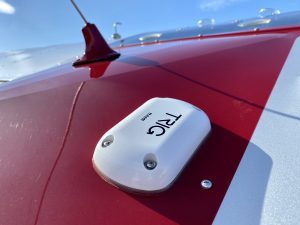

Trig TT21 Mode S XPDR – 2¼”
TruTrak Autopilot
PM3000R Stereo Intercom

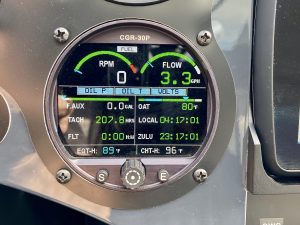

Electronics Int’l CGR-30P Engine Monitor
– Digital Tachometer
– Digital Oil Pressure/Temp
– Digital CHT Monitor
– Digital EGT Monitor
– Digital OAT Monitor
– Digital Fuel Management
Analog Airspeed Indicator
Analog Altimeter
Inclinometer
RAMI antenna

FLIGHT CONTROLS & INTERIOR

Dual Flight Controls
Dual Toe Brakes
Electric Elevator Trim on the Control Stick
Pilot Push-to-talk in the Control Stick
Co-pilot Push-to-talk in the Wing Root
Pilot & Co-pilot standard headset jacks in the wing root
Powered ANR Headset Jacks in Wing Root (Bose/LEMO)

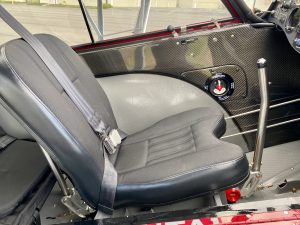

Adjustable Fore/Aft Front Seat

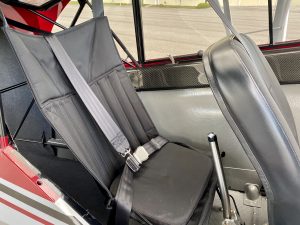

Stow-away Rear Seat (fixed rear seat option available)
Lap Belt & Inertia Reel Shoulder Harnesses
Windshield-mounted Whisky Compass
Durable Ballistic Nylon Seat Cushions & Covers
Full Composite Floorboards
Ignition Status Lights (left / right)
Carburetor Heat Control
Fuel/Air Mixture Control
Cabin Heat Control
Improved post-2014 Carbon Cub Cabin Heat System
Master switch/Avionics Master/Circuit Breakers/AP Level Button
12V Auxiliary Outlet
Flat Black Glare Shield
Dual Swing-out Windows

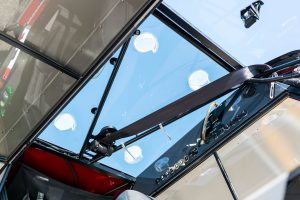

Tinted Windows and Skylight
Cabin Fresh Air Vents (4X)
Rear Cabin Cargo Tie-down Points

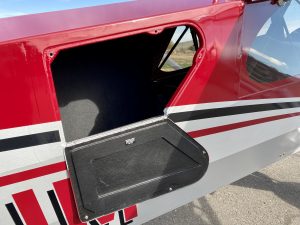

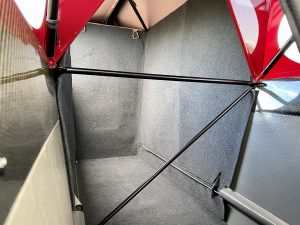

Extended Baggage Option with Rear Access Door
Upgraded Baggage Area Carpet Liner
Cup/Bottle Holder for Pilot
Dual Headset Hooks

LANDING GEAR

Standard Carbon Cub Landing Gear
6″ Grove Wheels, Double Puck Brake Calipers & Rotors
1.5″ Brake Upgrade

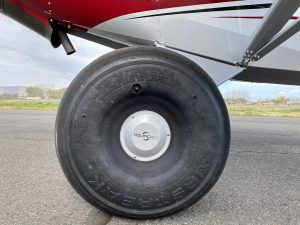

26″ Airstreak Tundra Tires
Dual Parking Brakes

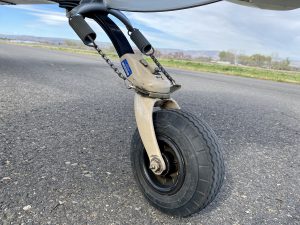

3200 Style Tailwheel
ABW Tailwheel Spring
Non-skid Pilot & Passenger Steps

SAFETY FEATURES

Front & rear seat inertia reel 4 point harnesses
Audible stall warning horn
No header tanks
Kannad 406 Integra ELT (Built-In GPS)
Visual fuel gauges
Dual-action safety fuel selector valve
Complete 4130 reinforced fuselage
Ignition backup battery system
SMARTmonitor©

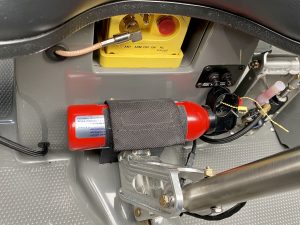

Halon Fire Extinguisher

HISTORY / LOGBOOKS (click below)

N363JM Airframe Logbook
N363JM Engine Logbook
N363JM Prop Logbook

Price: $194,000
