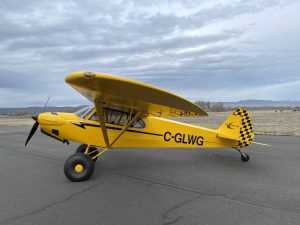

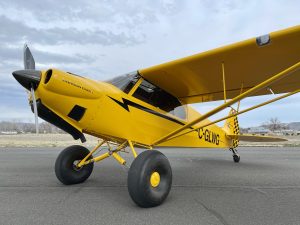

C-GLWG / RARE Factory Built Canadian Carbon Cub!

Overview

  • Location: CubCrafters Factory - Yakima, WA

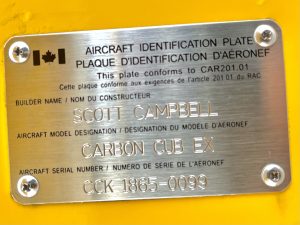

  • Serial: CCK-1865-0099
  • Make: CubCrafters
  • Model: Carbon Cub EX (Canada Edition)
  • Year: 2014
  • N Number: C-GLWG
  • TTAF: 506 (Tach) NDH
  • TTE: 506 (Tach) NDH
  • Engine: TITAN® CC-340 (180 HP)
  • Prop: Catto 80x50 NLE - Dynamically Balanced
  • Fuel Capacity: 44 Gallons Total - 40 Gallons Useable
  • Empty Weight: 1014 lbs.
  • Gross Weight: 1865 lbs. (851 lbs. useful load)
  • Last Annual: August of 2020
  • Interior Rating: 9/10 (excellent / very minor wear only)
  • Exterior Rating: 8.5/10 (excellent / minor cosmetic squawks only)

Description

FOR IMMEDIATE SALE $199,500 USD – Contact Brad Damm (509) 961-2313

Ready for spring flying, C-GLWG is a very rare factory-built high gross weight Carbon Cub with Canadian registration. One of only six such aircraft ever built, they are almost never seen up for sale. G-GLWG has a massive 850 lbs. of useful load, even as equipped with 29″ tundra tires, 3X3 extended landing gear, a 3200B bush tailwheel, and a heavy-duty ABW tailwheel spring. It’s an aircraft that is very capable for the shortest of primitive strips and off-airport landing locations. With both extended baggage and long-range fuel, it’s also equipped for extended backcountry trips. When not having been flown, this airplane was always hangared by the previous owners, and is in excellent mechanical and cosmetic condition!

Whether used for work or for pleasure, an aircraft like this provides a unique tool for social distancing while also following the appropriate guidelines from both Government and healthcare professionals. – Concerned about Covid-19? – We can bring this aircraft to you!

Please Note: This airplane is certified in the Canadian Amateur Homebuilt category and is not eligible for United States Registration as an Experimental Amateur Built aircraft.

Equipment

FIREWALL FORWARD

TITAN® 340CC Engine, 180HP

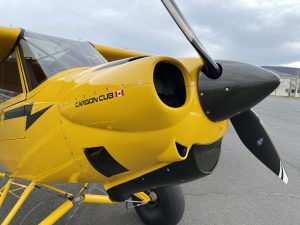

Improved 2014 Composite Cowling
Lightweight Titanium Firewall
Magnesium Accessory Case
Spin-On Oil Filter & Vernatherm
Perforated Fuel Nozzle
Adjustable Cowl Flaps

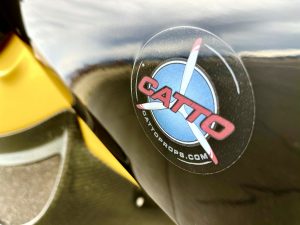

CATTO® Composite Propeller (dynamically balanced)
Lightweight 40 amp Alternator
Dual Electronic Ignition w/backup Battery System
Iridium Spark Plugs
Lightweight Hartzell® Starter
Pilot Controlled Carburetor Heat

FUEL SYSTEM

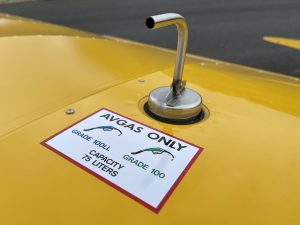

Two 12.5 & two 9.5 gallon wing tanks (44-gallon total capacity)
Fuel Selector Valve (Left, Right, Off, & Both)
Gravity Feed Fuel System – No Header Tanks or Fuel Pump
Fuel Sight Gauges in Wing Roots
Fuel Filter and Low Point Drains
Cold WX Engine Fuel Priming System
Aircraft Plumbed for Auxiliary Fuel Belly Pod (25+ gallons)
Front Fuel Step on Landing Gear

AIRFRAME

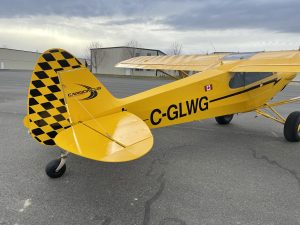

Classic Yellow Cub Paint Scheme – Crimson over Silver Urethane Paint
Medium-weight PolyFiber® Fabric Covering
4130 Chromoly Steel Fuselage Tested to 1,865 lbs. MTOW

WINGS & TAIL

Super Cub Airfoil – USA35(B)
Aluminum/Composite Wing Structure Tested to 1,865 lbs. MTOW

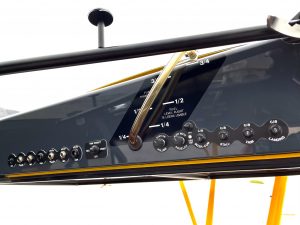

Flaps – Three Positions: 15°/30°/50°

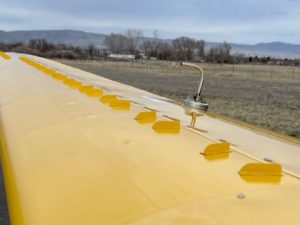

Full Span Vortex Generators Both Wings
Aerodynamically Balanced Empennage / Tail Section

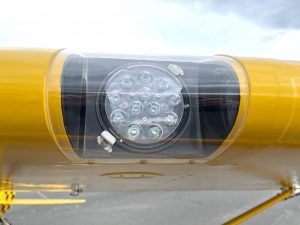

Lightweight LED Landing Light & Strobe Package

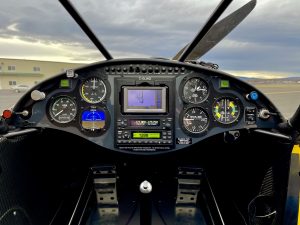

INSTRUMENT PANEL

Custom VFR panel Upgrade
Garmin® aera™ 560 (panel mounted)
Garmin® GTR 200 VHF Com Radio
Garmin® GTX 327 Mode C Transponder
RC Allen® 3″ Digital Attitude Indicator
PS Engineering® PM3000R Stereo Intercom
Analog Combination Oil Temp/Pressure Gauge
Analog Tachometer w/Hour Meter
Analog Airspeed Indicator
Analog Vertical Speed Indicator
Analog Altimeter
SMARTmonitor© Digital CHT monitor
SMARTmonitor© Digital Volt/Amp/Ignition monitor
RAMI antenna

FLIGHT CONTROLS & INTERIOR

Dual Flight Controls – Front & Rear Sticks
Dual Toe Brakes – Front & Rear
Electric Elevator Trim on the Control Stick (front & rear)
Pilot Push-to-talk in the Control Stick
Co-pilot Push-to-talk in the Wing Root
Pilot & Co-pilot standard headset jacks in the wing root
Powered ANR Headset Jacks in Wing Root (Bose/LEMO)

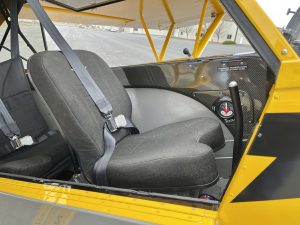

Adjustable Fore/Aft Front Seat

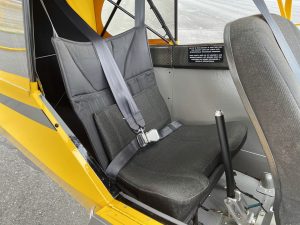

Stow-away Rear Seat (fixed rear seat option available)
Lap Belt & Inertia Reel Shoulder Harnesses

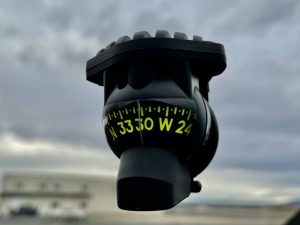

Windshield-mounted Whisky Compass
Durable Ballistic Nylon Seat Cushions & Covers
Full Composite Floorboards
Ignition Status Lights (left / right)
Carburetor Heat Control
Fuel/Air Mixture Control
Cabin Heat Control
Improved 2014 Carbon Cub Cabin Heat System
Master switch/Avionics Master/Circuit Breakers/AP Level Button
12V Auxiliary Outlet
Flat Black Glare Shield
Dual Swing-out Windows
Tinted Windows and Skylight
Cabin Fresh Air Vents (4X)
Rear Cabin Cargo Tie-down Points

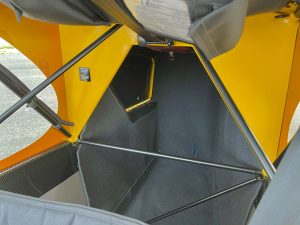

Extended Baggage Option with Rear Access Door
Upgraded Baggage Area Carpet Liner
Cup/Bottle Holder for Pilot
Dual Headset Hooks

LANDING GEAR

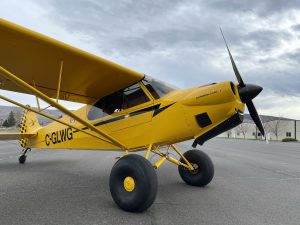

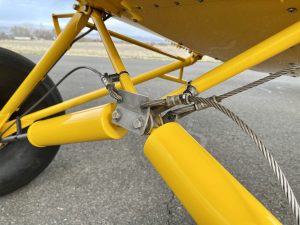

3X3 Extended Carbon Cub Landing Gear
Alpha Omega Suspension System (AOSS)

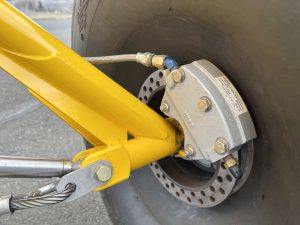

6″ Grove® Wheels, Double Puck Brake Calipers & Rotors
1.5″ Brake Upgrade

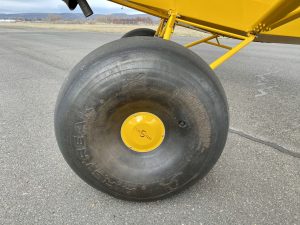

29″ Airstreak® Tundra Tires (75% tread)
Dual Parking Brakes

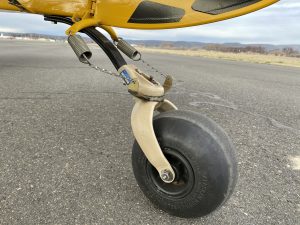

3200B “Baby Bush” Style Tailwheel
ABW® Tailwheel Spring
Non-skid Pilot & Passenger Steps

SAFETY FEATURES

Front & rear seat inertia reel 4 point harnesses
Audible stall warning horn
No header tanks
Kannad® 406 Integra ELT (Built-In GPS)
Visual fuel gauges
Dual-action safety fuel selector valve
Complete 4130 reinforced fuselage
Ignition backup battery system
Two SMARTmonitor© displays (CHTs & Volt/Amp/Ignition)
Halon Fire Extinguisher

HISTORY / LOGBOOKS (click below)

C-GLWG Logbooks Download – Click Here

Price: $199,500 USD
